印尼Syech Yusuf探索公園景觀設計 | andramatin + ARA Studio

Andramatin 2022-03-23

原創

項目名稱：

Syech Yusuf探索公園
項目地點：

印尼南蘇拉威西省戈瓦市
項目規模：

50,547 ㎡
設計公司：

andramatin & ARA Studio
施工單位：

PT. Fatimah Indah Utama
委托方：

戈瓦市政府
建成時間：

2019
圖片來源：

Agung Fadriansyah, andramatin & ARA Studio

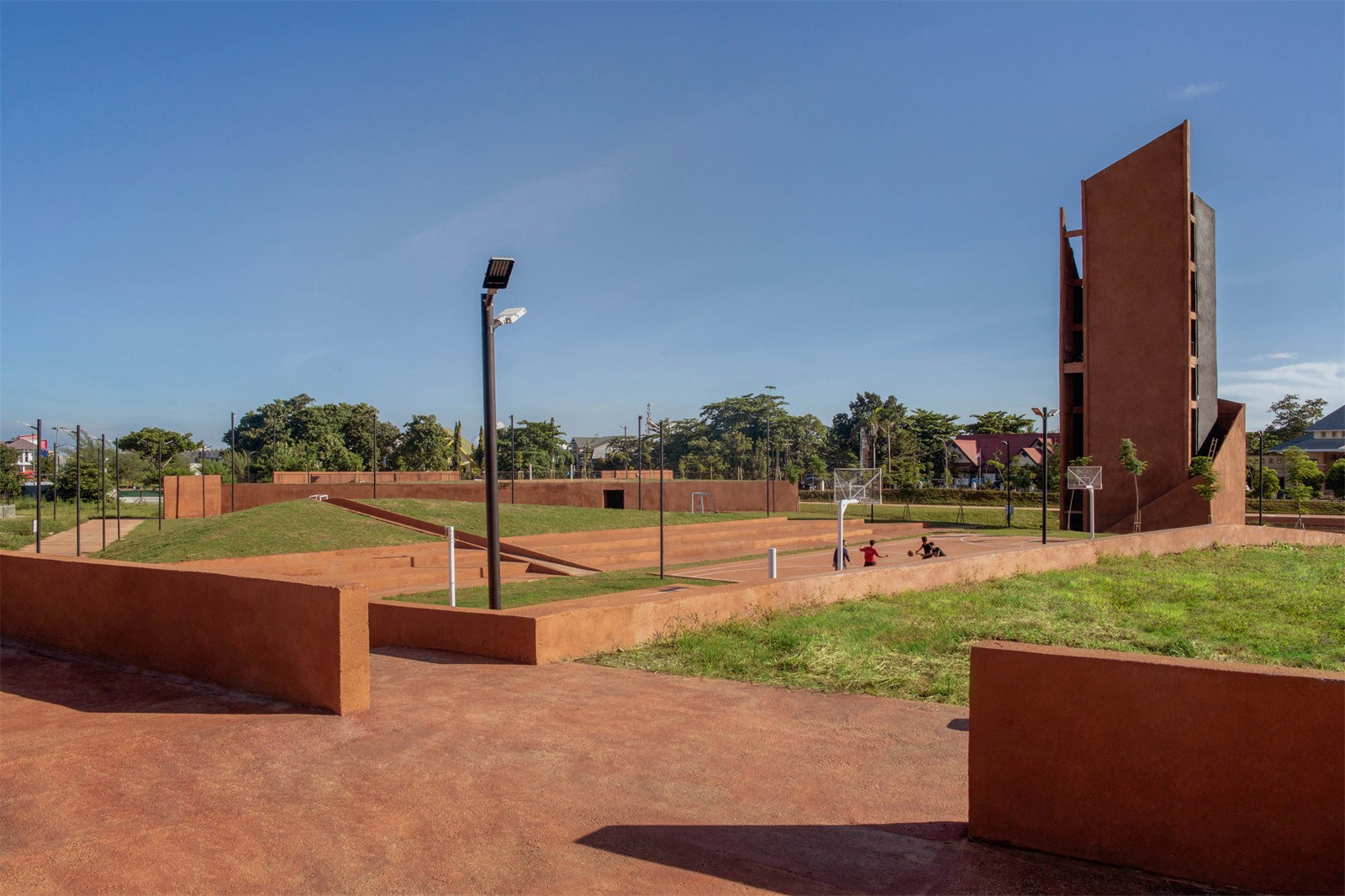

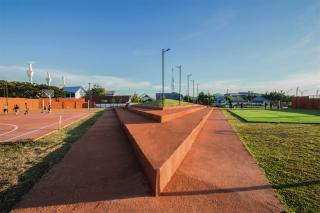

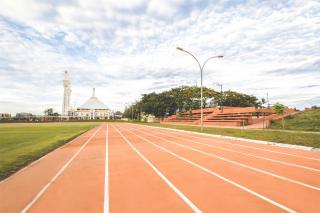

▼Syech Yusuf探索公園

Syech Yusuf Discovery Park ? Agung Fadriansyah

本項目由印度尼西亞戈瓦市政府發起，以期由此振興Syech Yusuf Discovery區域。場地毗鄰大清真寺和市長辦公室在內的市政大樓，該地區也因此成為當?shù)厥姓顒拥闹行摹４送猓@里還有諸如慢跑道與運動場之類的豐富運動設施，使它成為市民喜愛的去處，甚至周邊城市的居民也會在周末來此游憩?；趫龅氐闹苓叚h(huán)境及設施，設計著眼于運用軸線將各處場所串聯起來，創造一條貫穿整個場地的路徑。

This project was initiated by the local government who wanted to revitalize the Syech Yusuf Discovery area. The site itself is surrounded by The Grand Mosque, the government office including the mayor’s office which made this area into a central meeting point of governmental activities. Not only that, this location is filled with many sports facilities such as jogging track and a couple of sports fields turning it into a desirable destination even for people from different cities such the people of Makassar during weekend. Having surrounded by these facilities, the main concern of the design is to connect the axis between these objects creating a direct circulation path across the site.

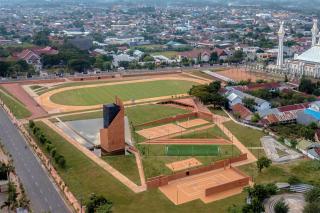

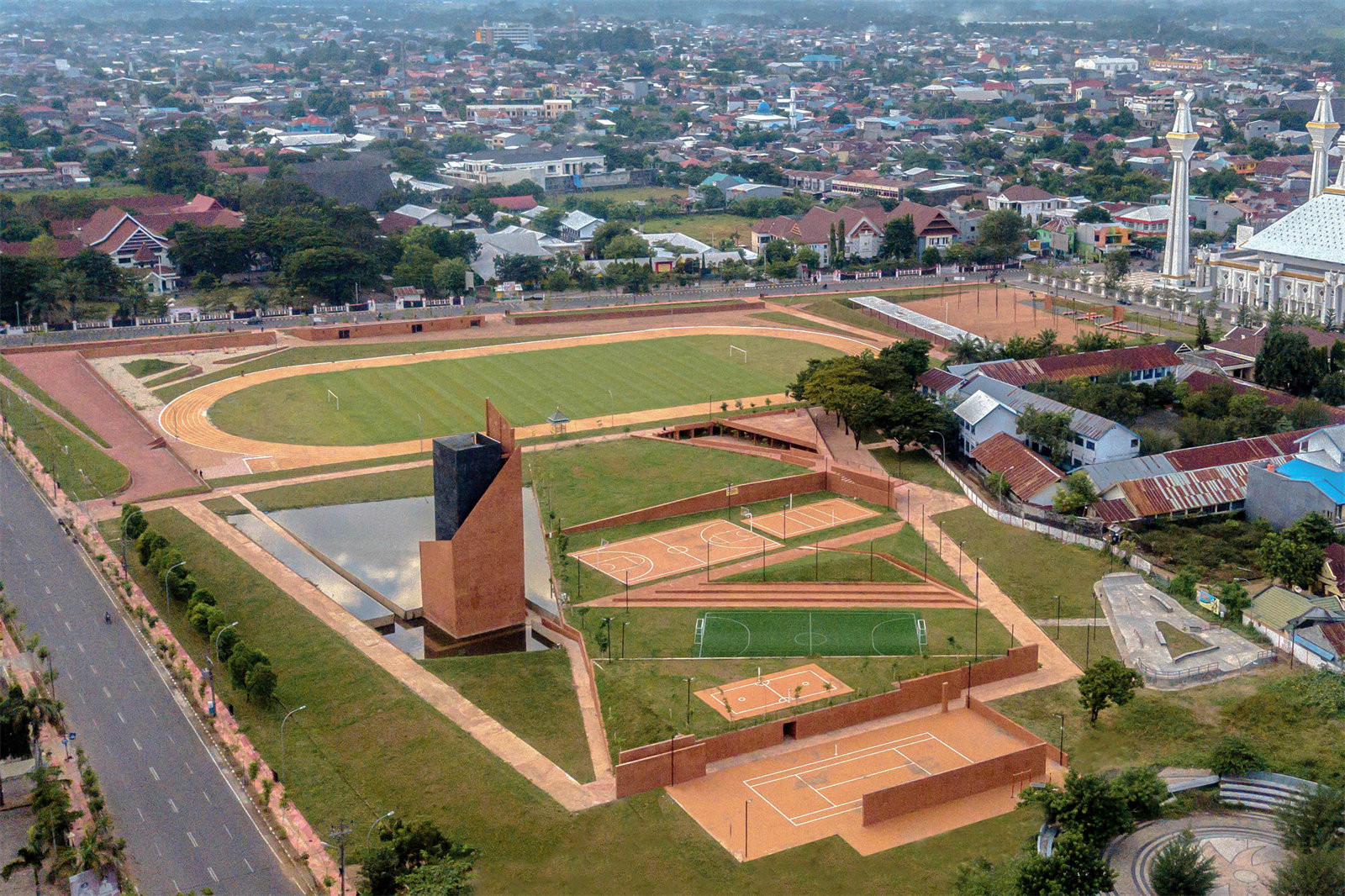

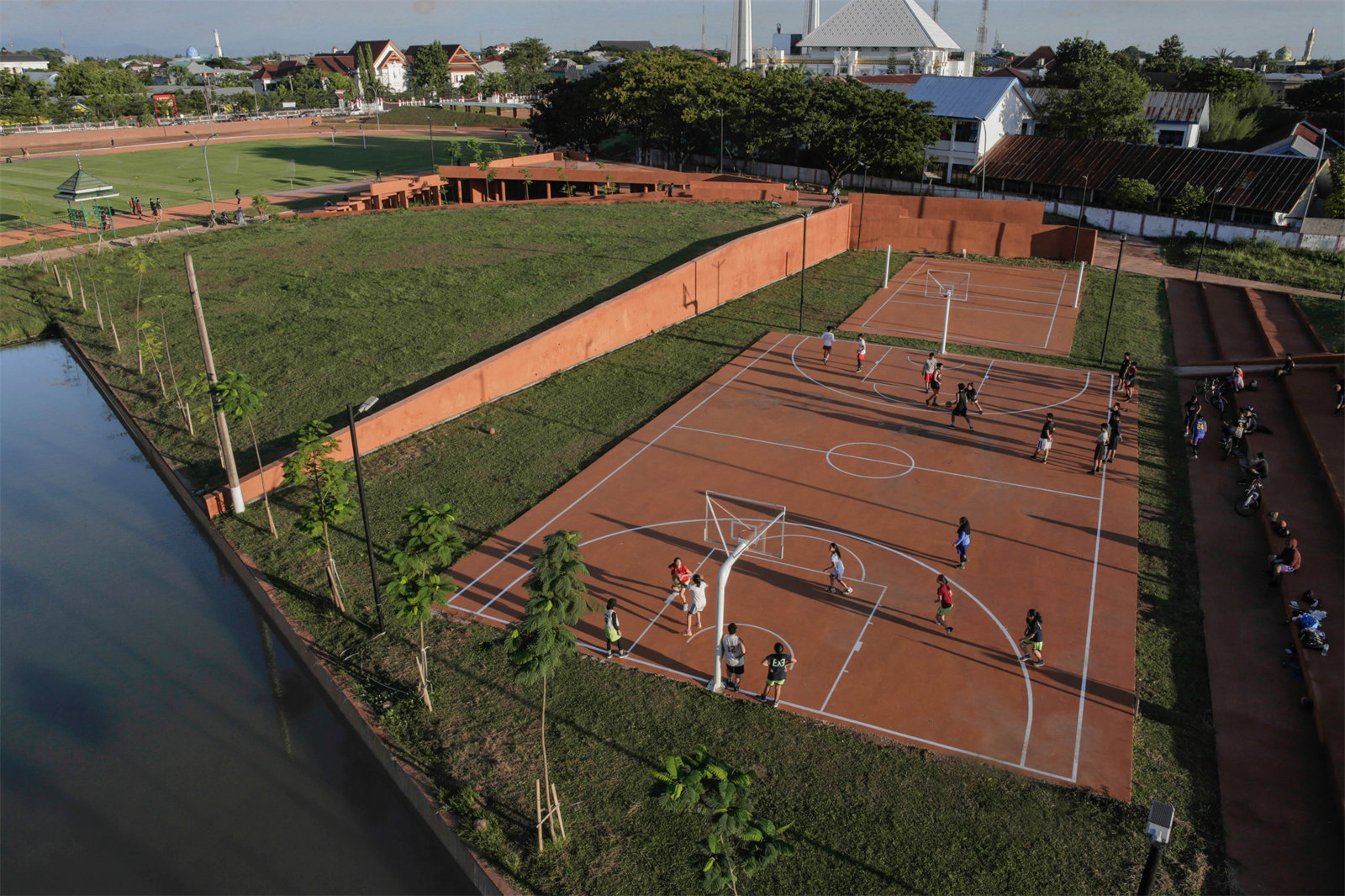

▼項目整體鳥瞰

bird’s eye view of the project ? Agung Fadriansyah

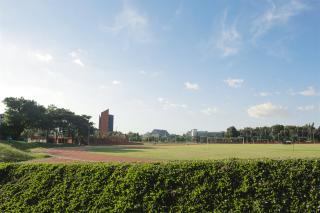

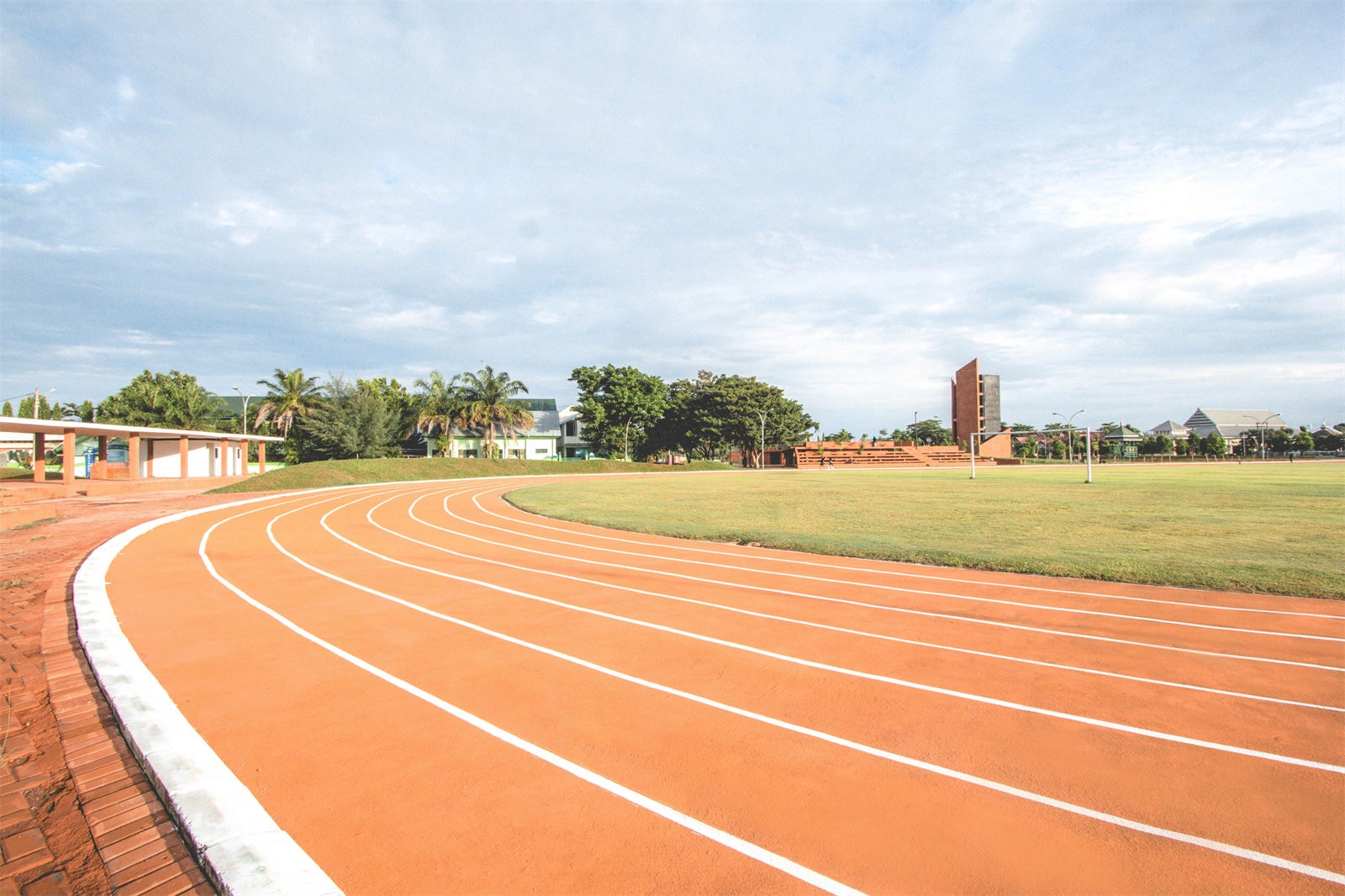

▼場地局部鳥瞰

partial bird’s-eye view of the park ? Agung Fadriansyah

從布局上來看，現狀設施零亂、人群分布散落各處，所形成的低監管力造成了安全隱患。因此，設計者首先重新規劃了整體布局，并增加額外體育設施來進一步塑造內部分區。重新規劃后，以前分散的小攤販集中在場地的北側，以凸顯場地內的南北分區。

From a distribution stand point, the pre-existing facilities were not placed accordingly which scattered its users all over the site creating a security problem from low supervision. Because of this, the first step that we did was to redesign the distribution of zones. We also add a few additional sports facilities to form its zones. The previously scattered PKL (hawkers) are now centralized in the northern area to emphasize the division of the northern zones.

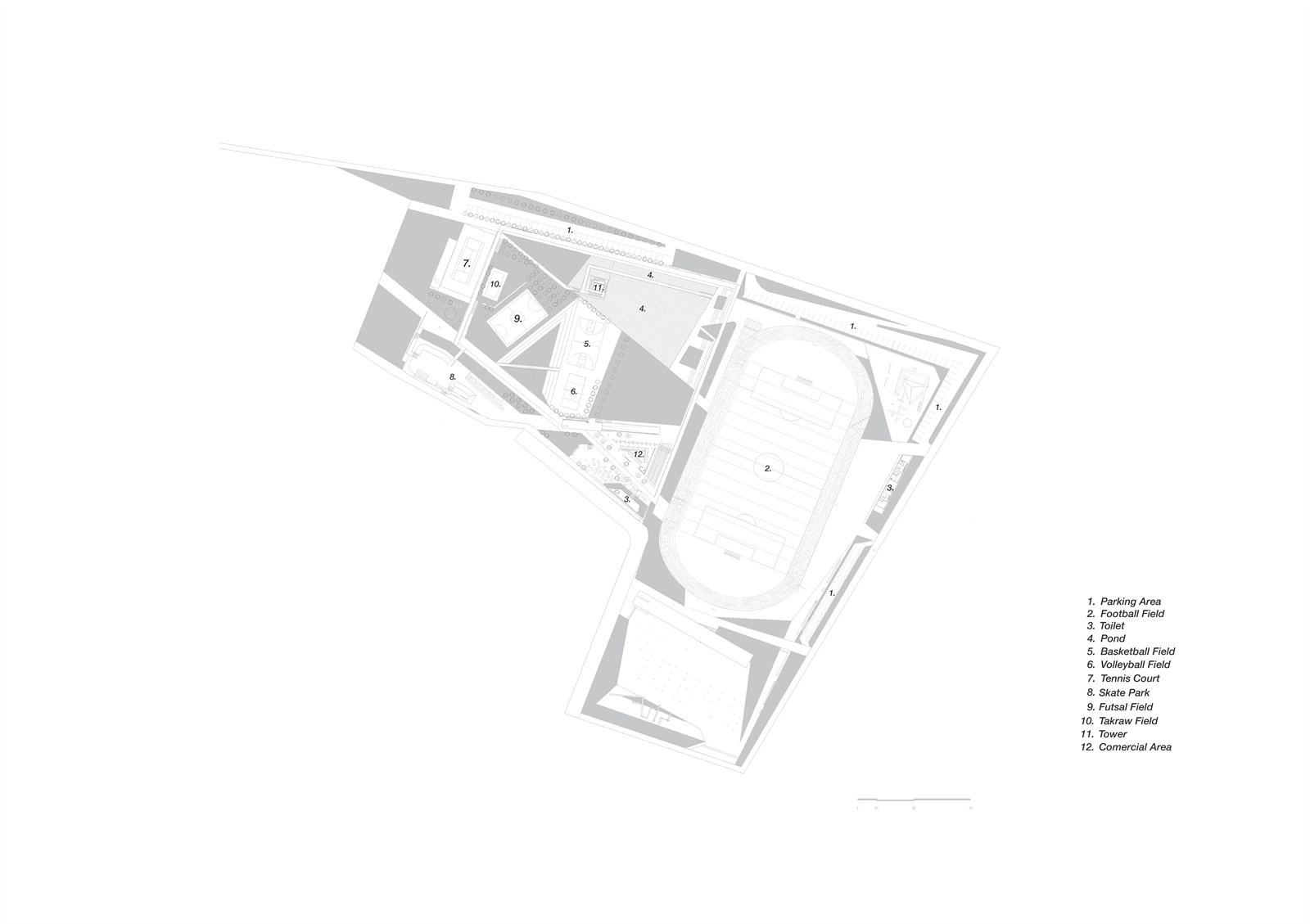

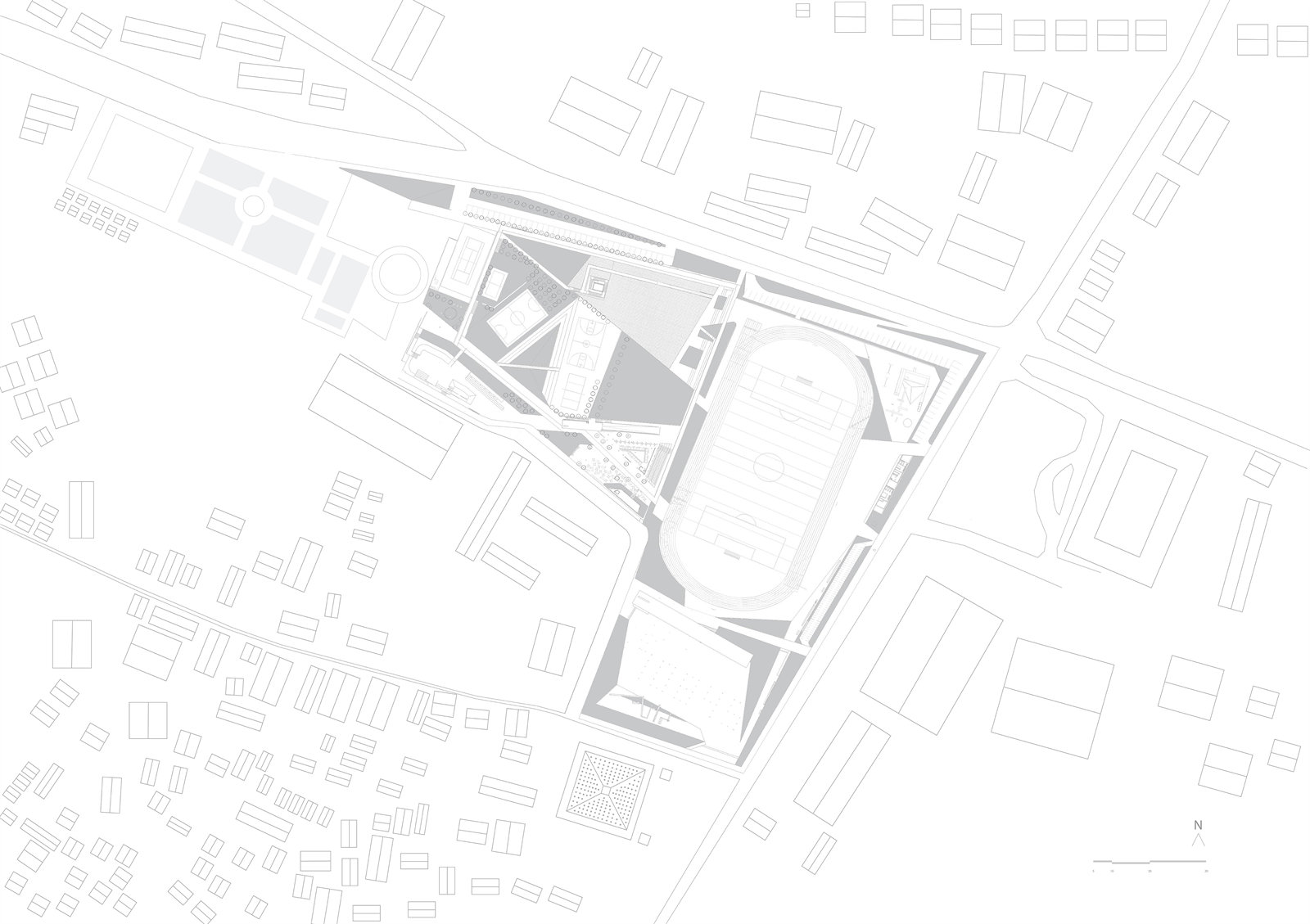

▼布局平面圖

layout plan ? andramatin & ARA Studio

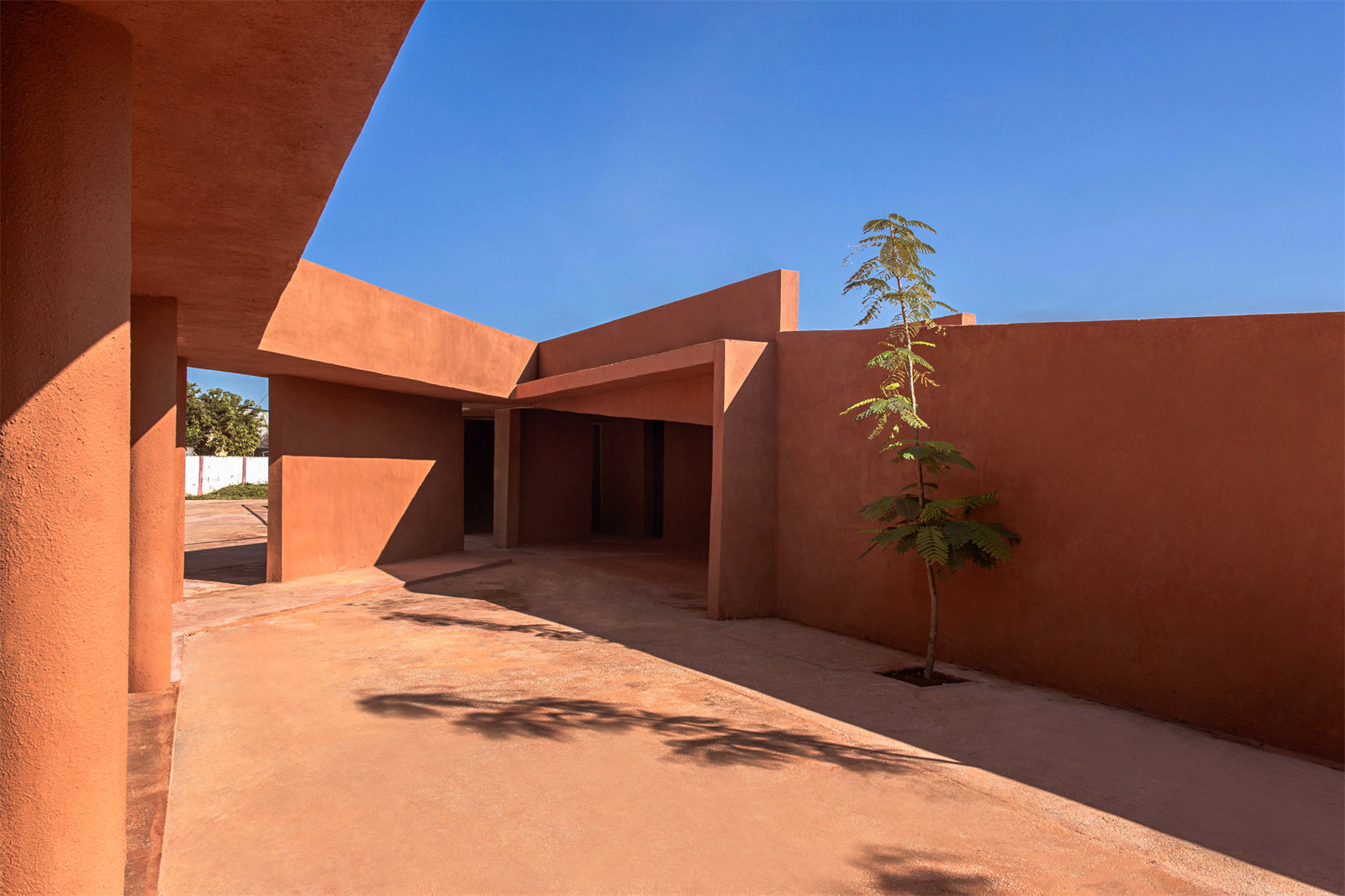

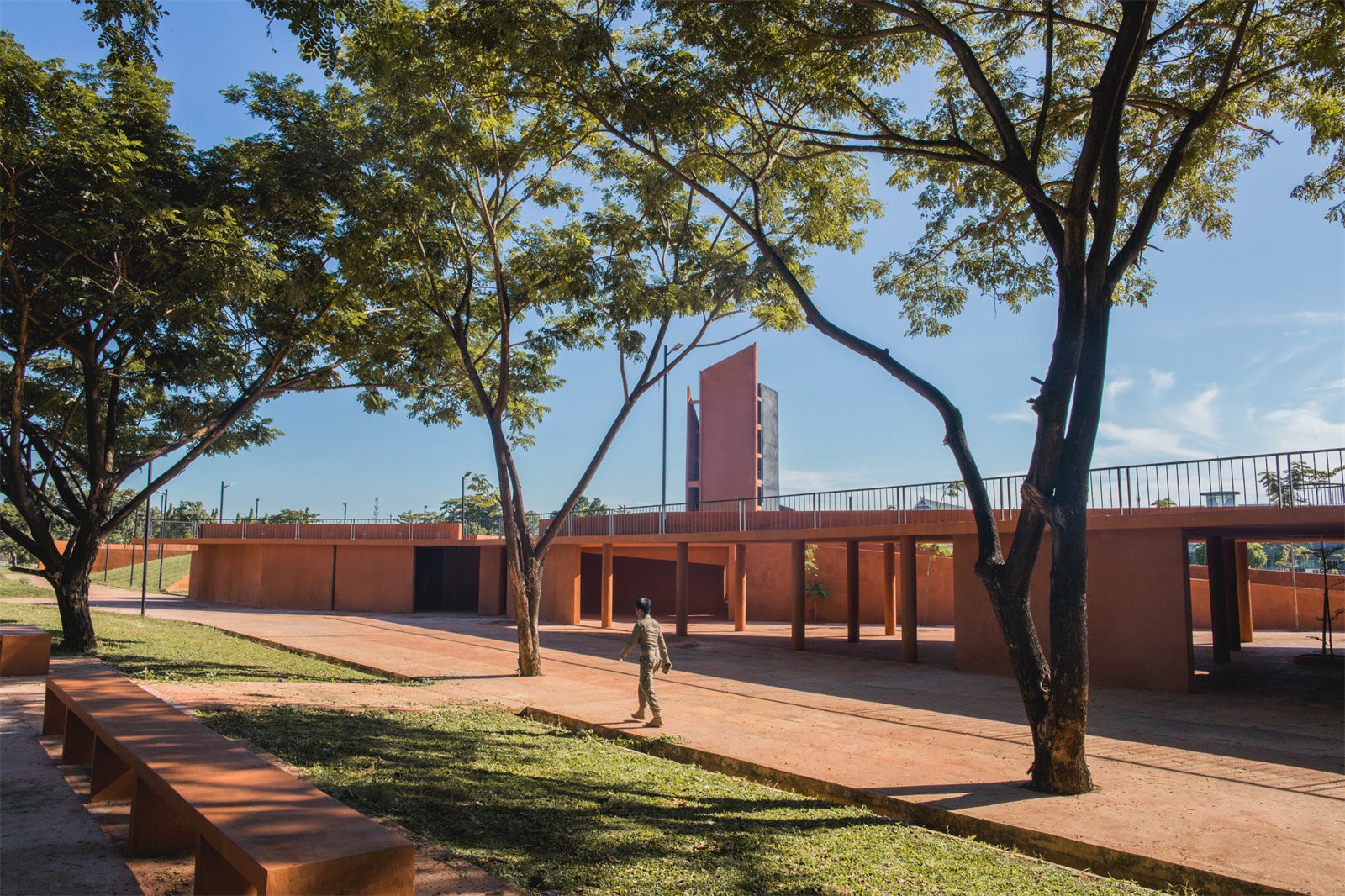

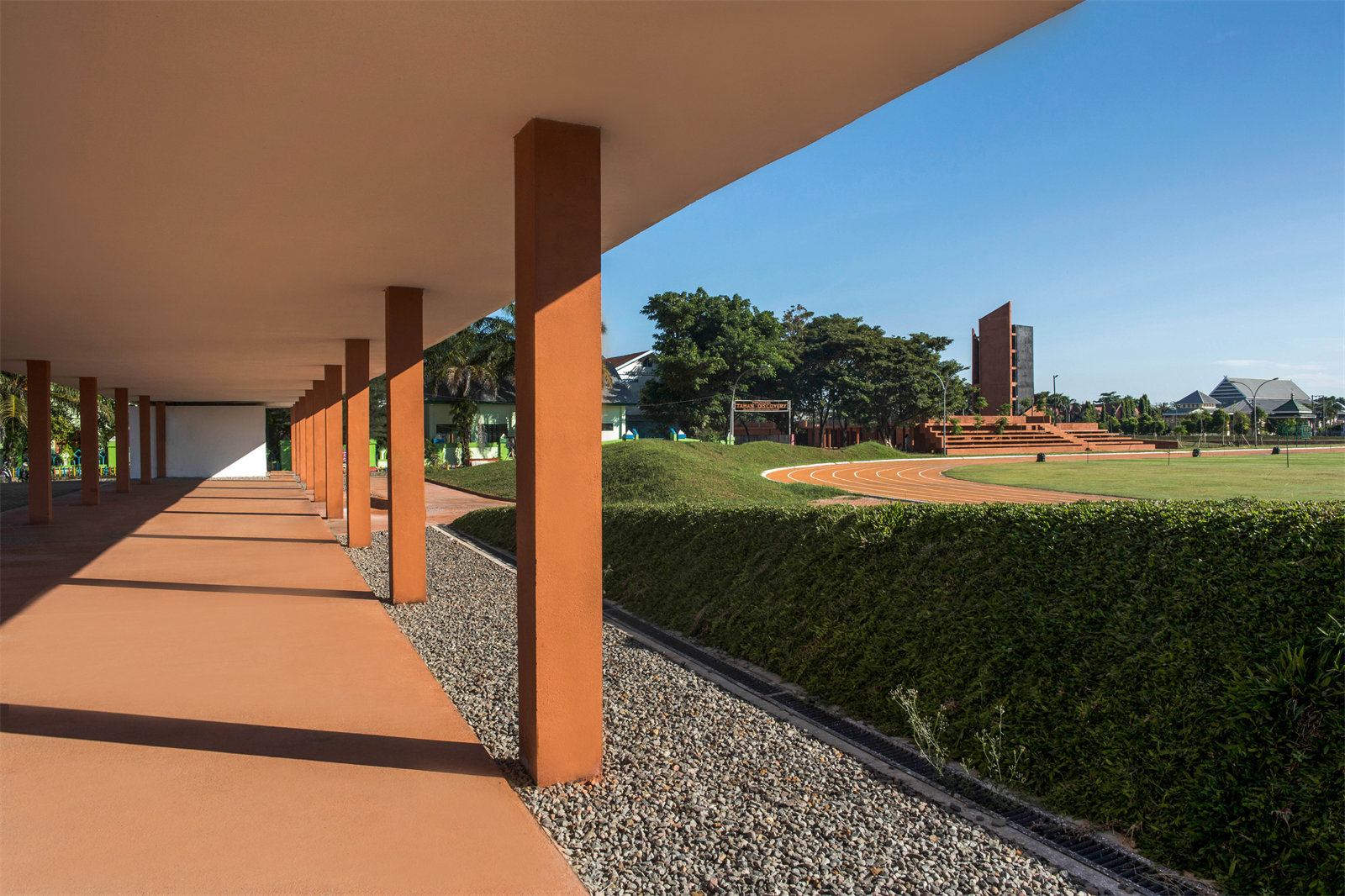

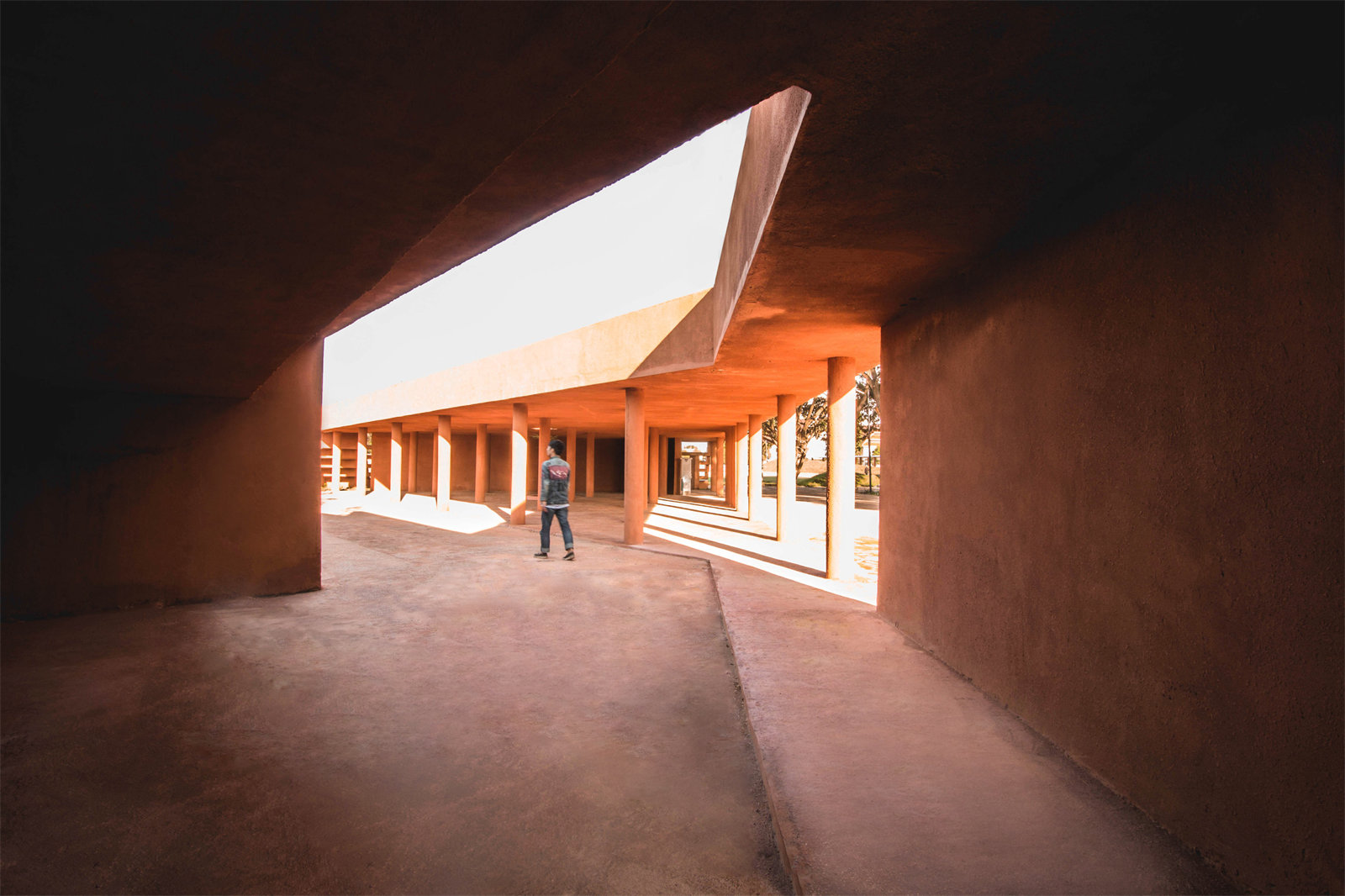

▼集市區

commercial area ? Agung Fadriansyah

由于北部集市區與公園直接相連，為了避免大量人流造成的交通堵塞，設計師結合交叉流線與斜坡地形，在場地內創造出不同層次的視角。交叉環路在多處與場地邊界相交，形成豐富的空間節點，不同高度的視角與帶有坡度的跑道也為使用者提供了更為自由的路線與使用選擇。

To avoid blocking from the northern zones unto the park that directly borders to site. The cross circulation was then combined with the use of slopping to create viewpoints from elevations scattered across the area. These cross circulations created intersections with edges that always meets. The combination of the elevated viewpoints and the slopping track gave the user freedom on choosing possible path and how to use them.

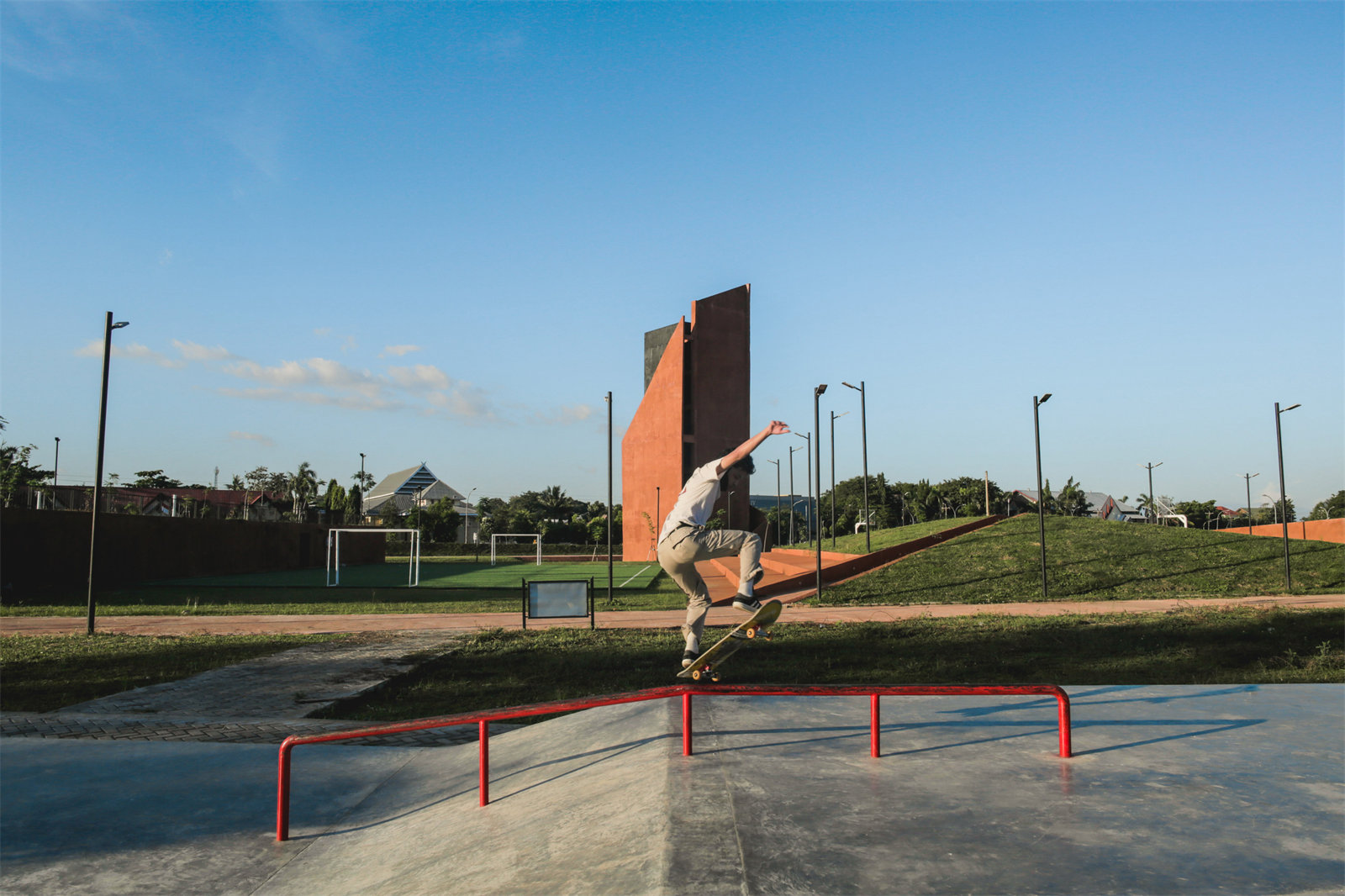

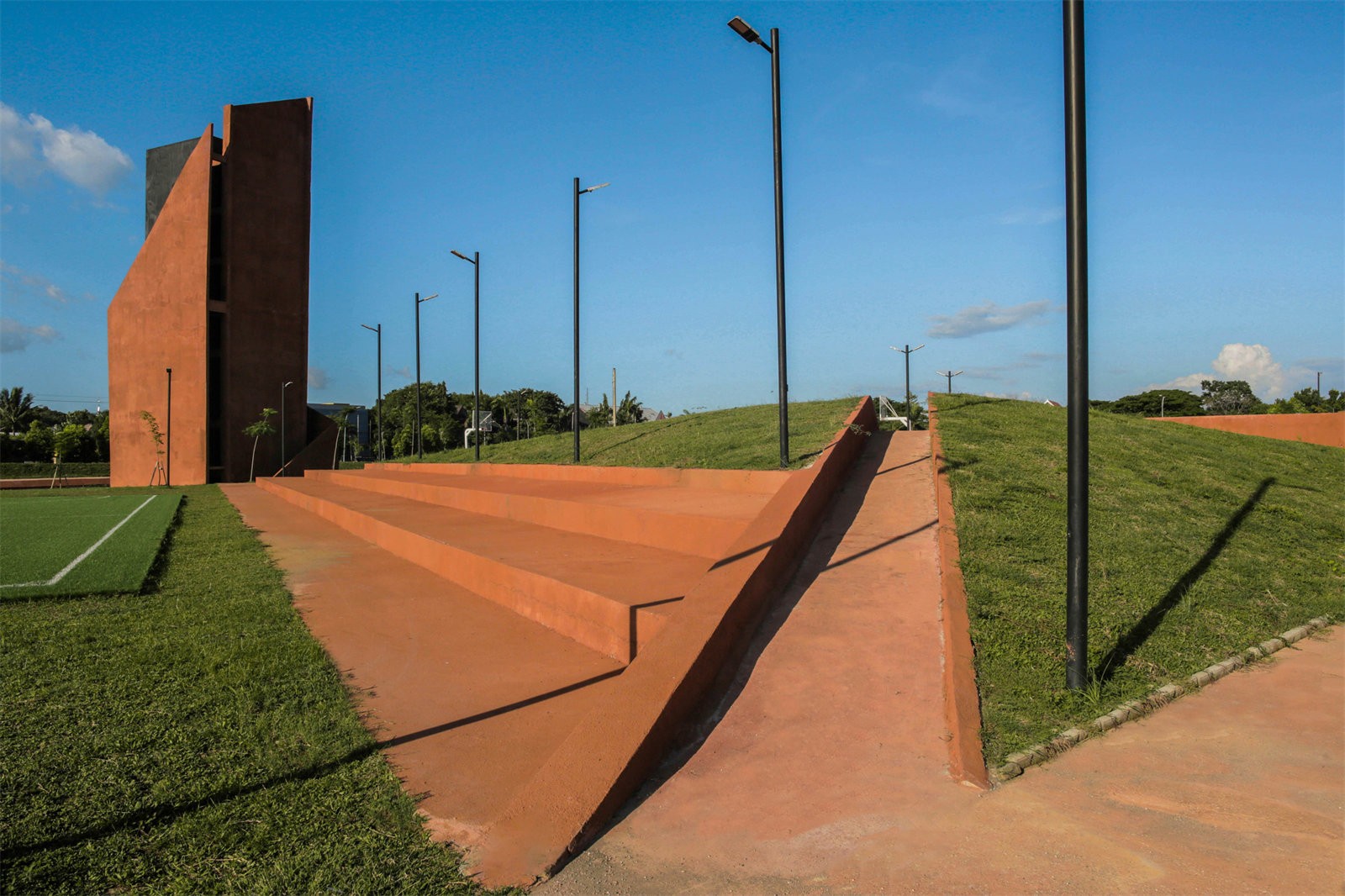

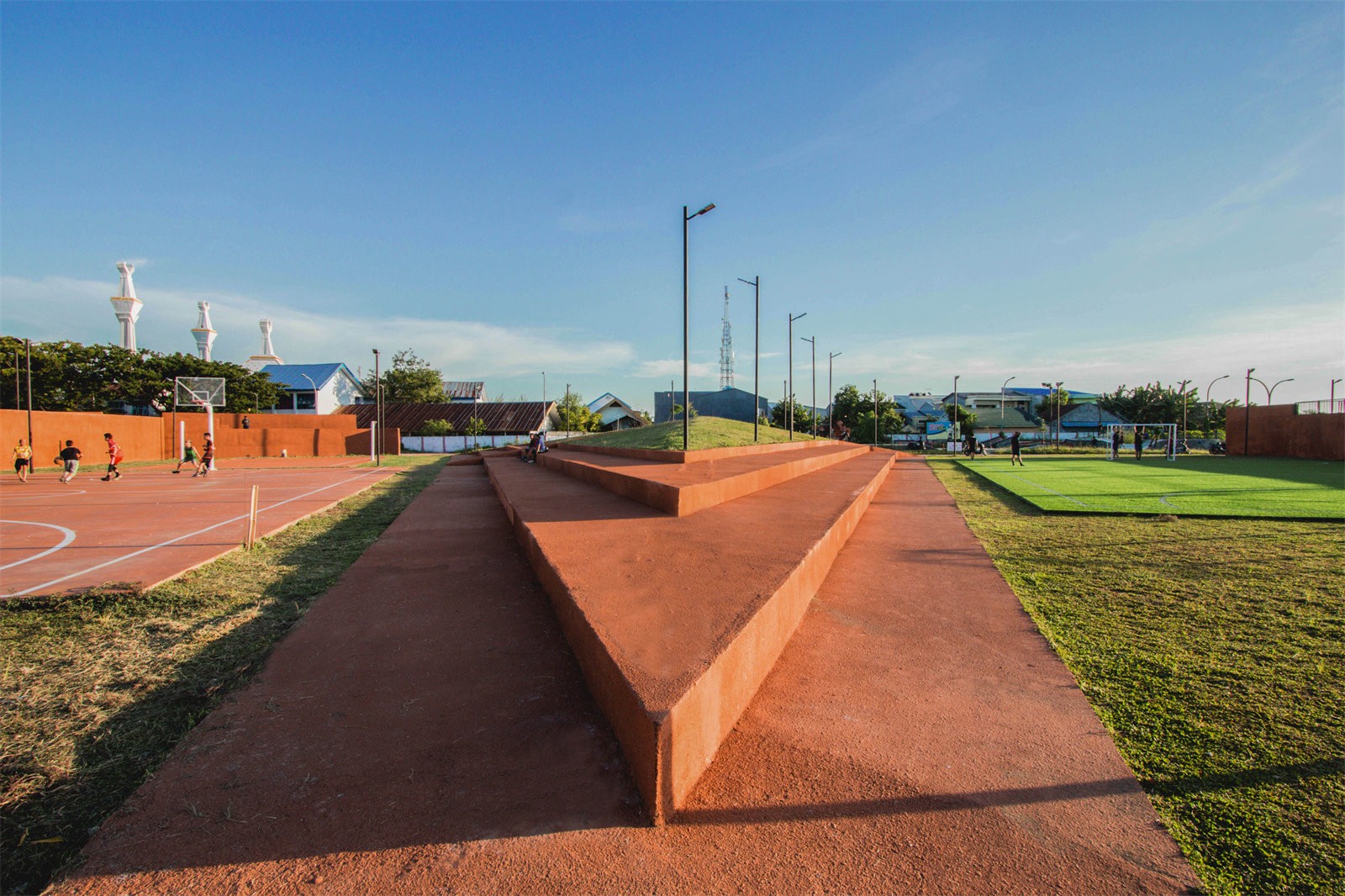

▼交叉流線與斜坡地形在場地內創造出不同層次的視角

The cross circulation was then combined with the use of slopping to create viewpoints from elevations ? Agung Fadriansyah

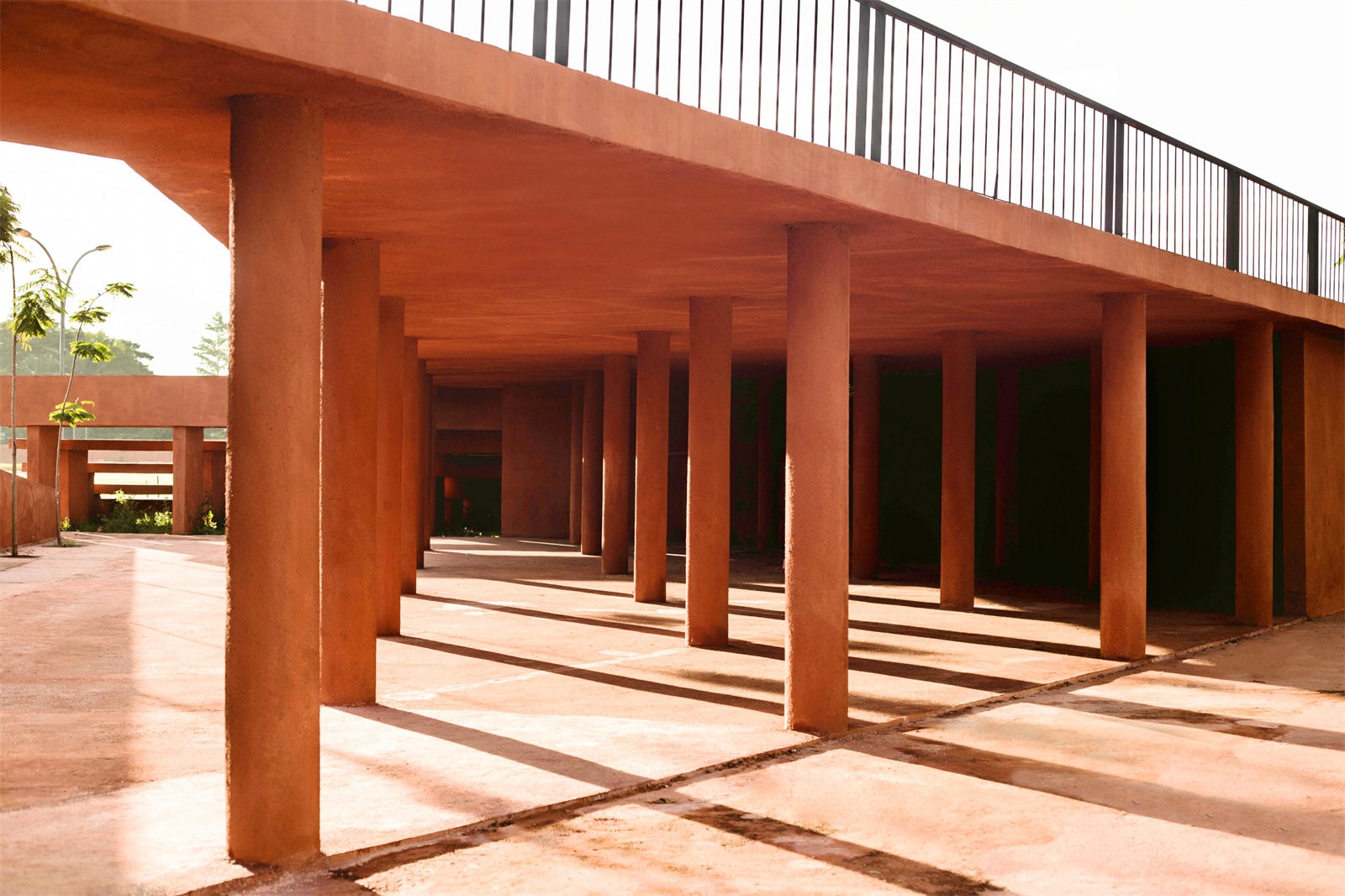

▼臺地細部

detail of the terrace ? Agung Fadriansyah

斜坡跑道不僅作為觀景路線供人們欣賞風光，同時也代替了圍欄，將飛來飛去的球擋在各個運動場內，以免打擾到其他區域。礫石的運用則可以減弱球的反彈。以上兩種干預措施讓運動區域能在保持開放時不依賴于圍欄。

Slopping tracks were not only meant as viewpoints to enjoy the scenery, but these elevated slopping tracks also functions as high walls that replaces the functions of fence to keep any kind of balls inbound so the user won’t bother other zones. The usage of gravels was meant to reduce ball rebounds. Both of this intervention allows the zone meant for sport to stay open without any fence around it.

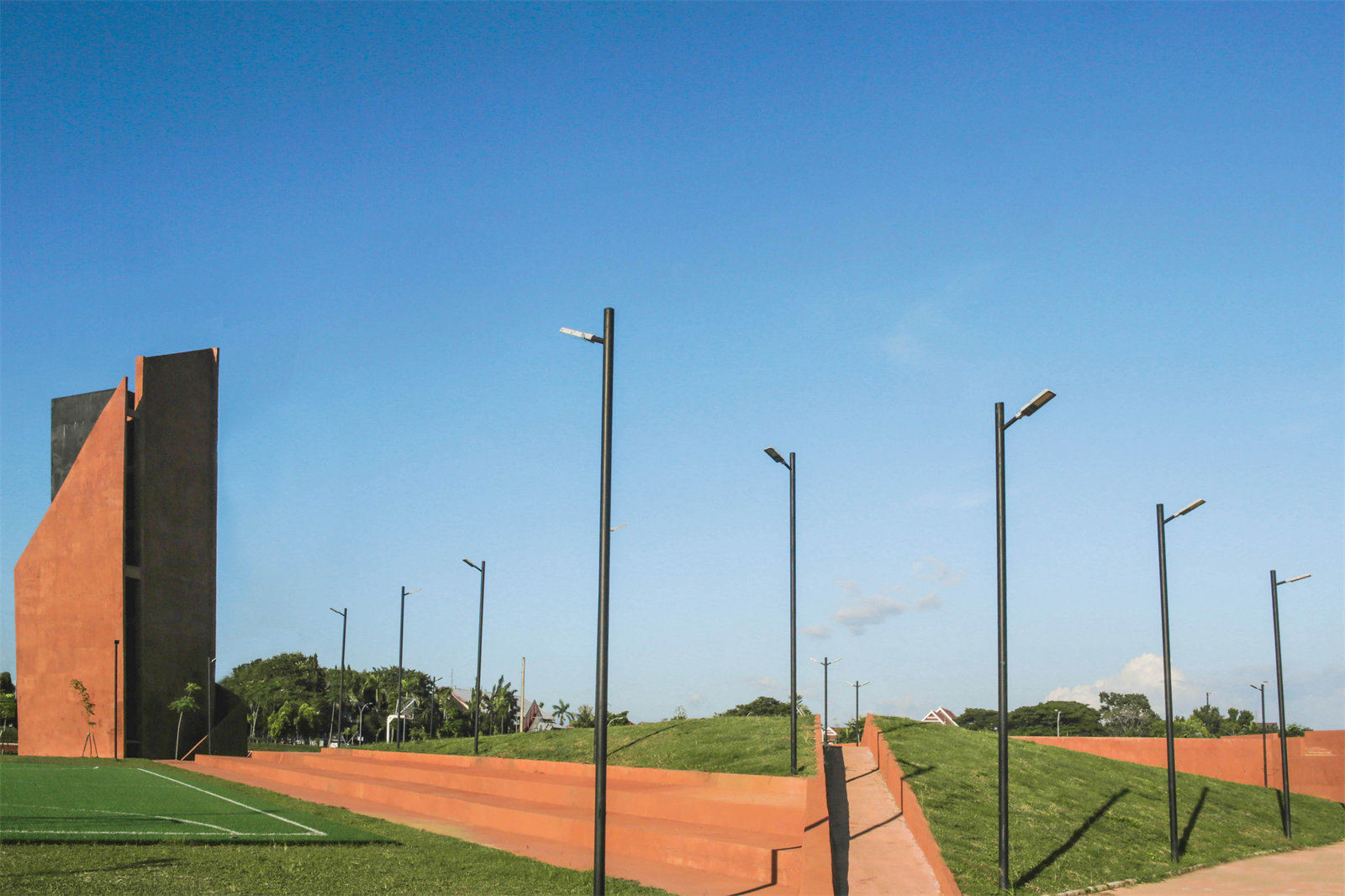

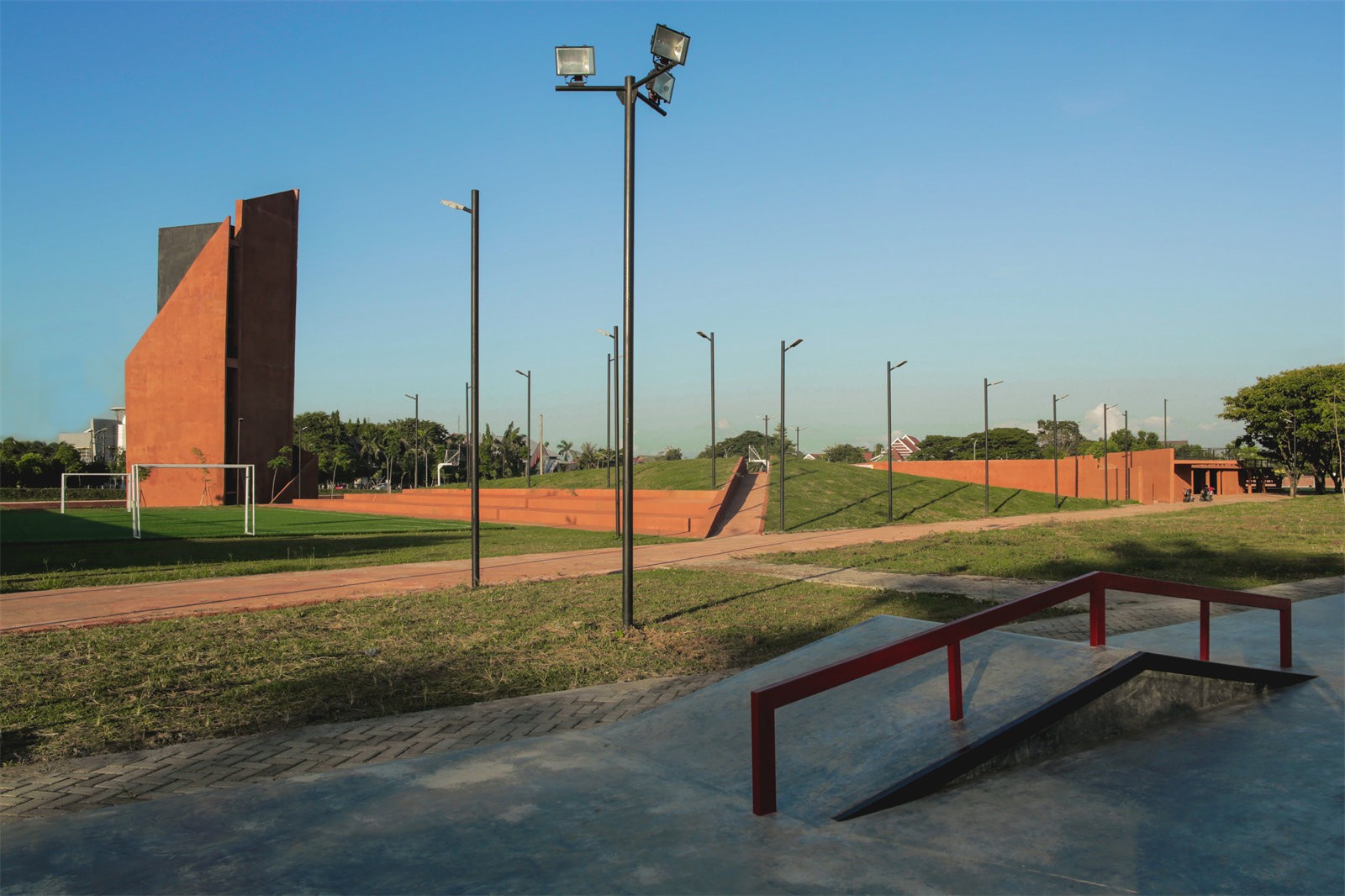

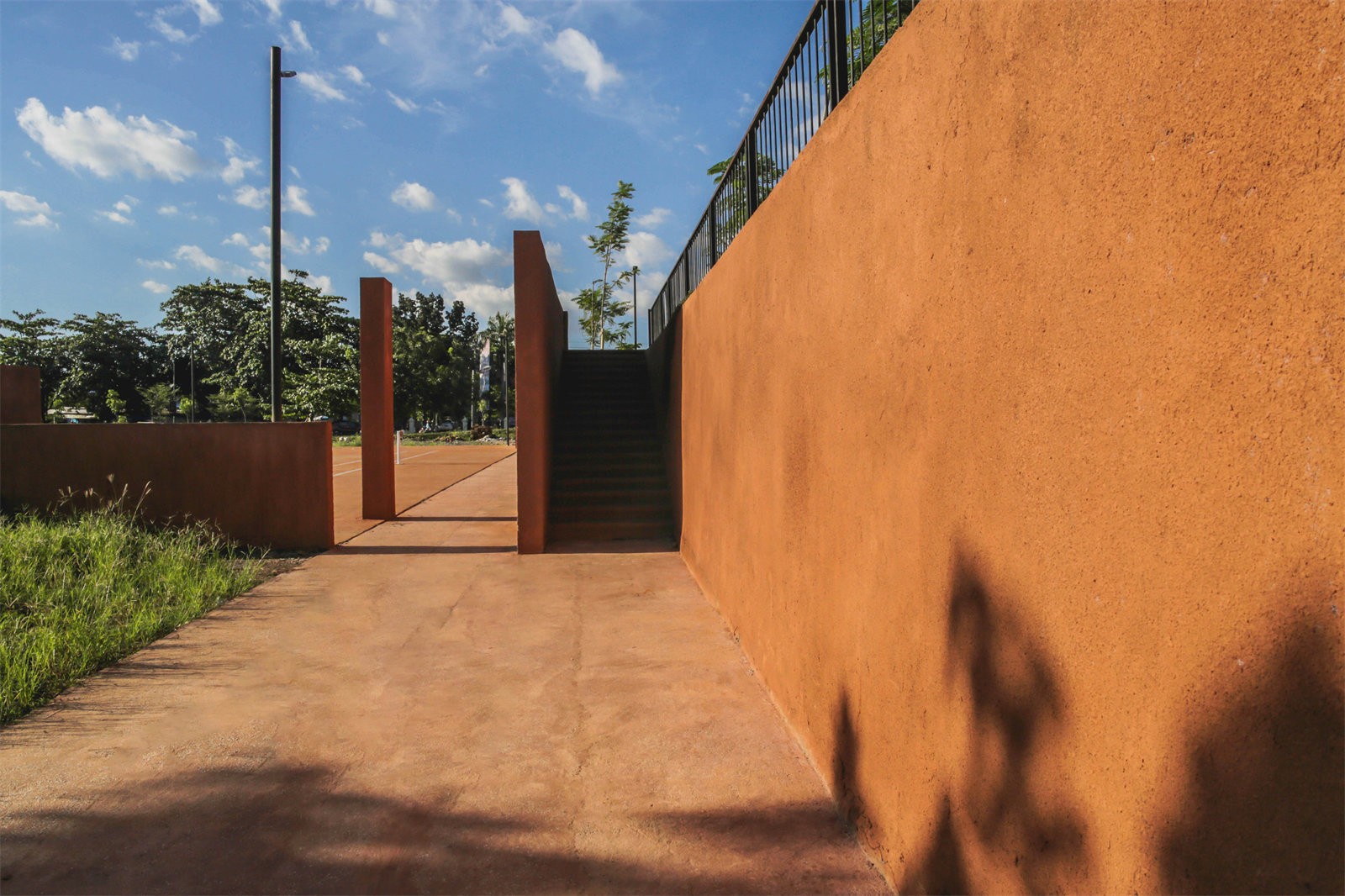

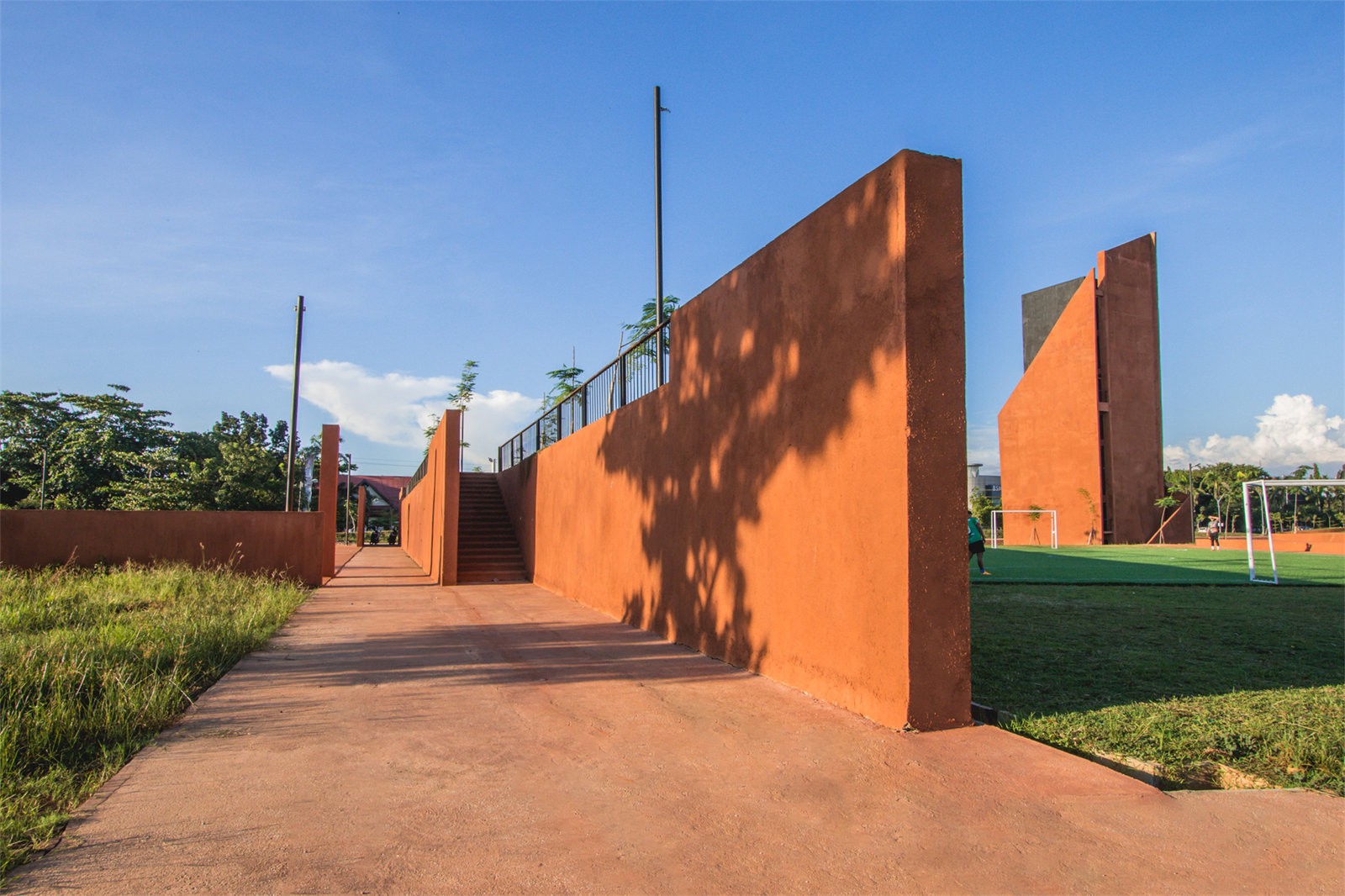

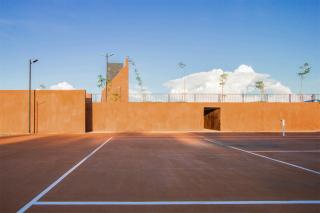

▼抬升的坡道還兼具高墻和柵欄的功能

The elevated slopping tracks functions as high walls ? Agung Fadriansyah

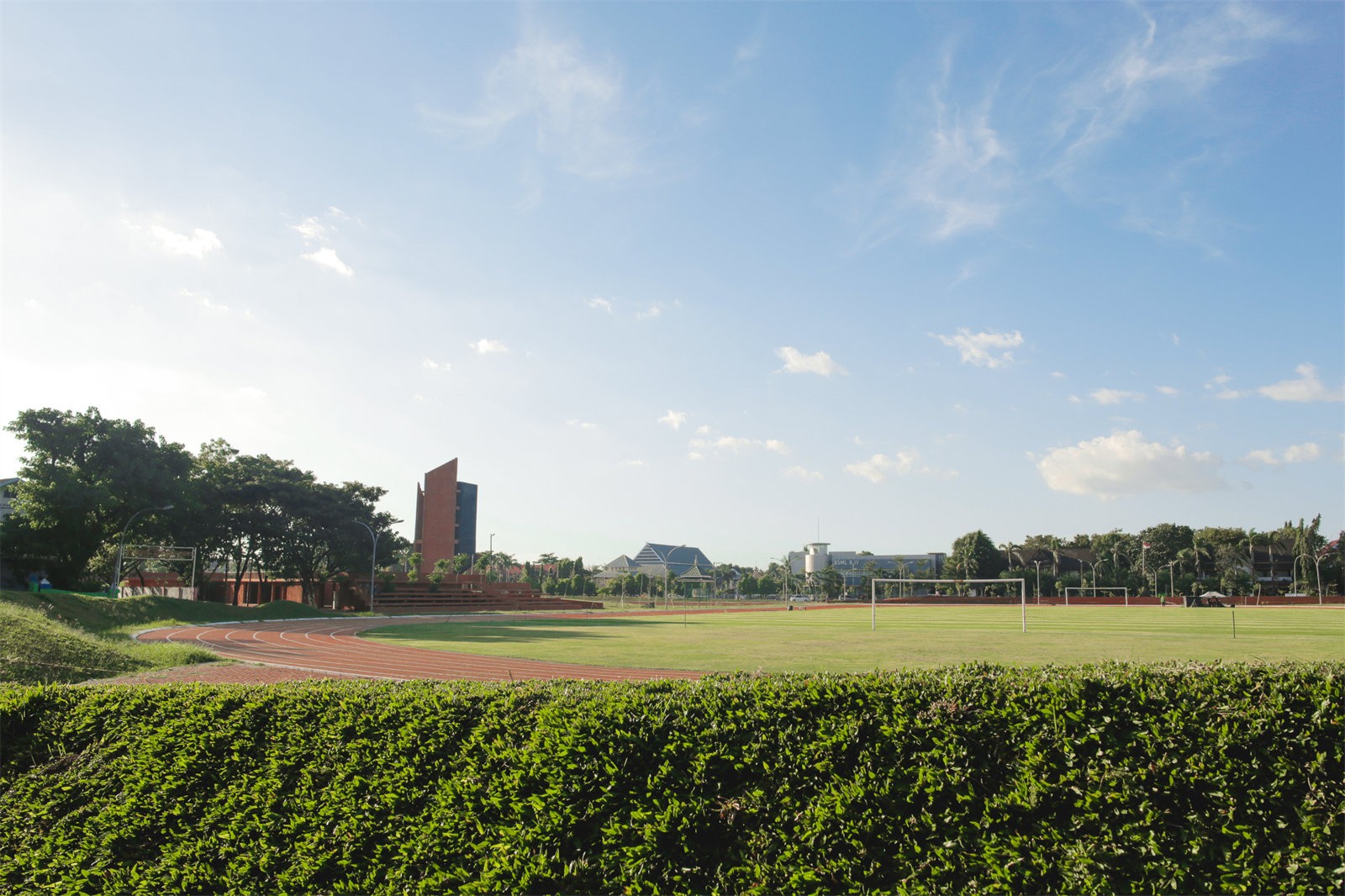

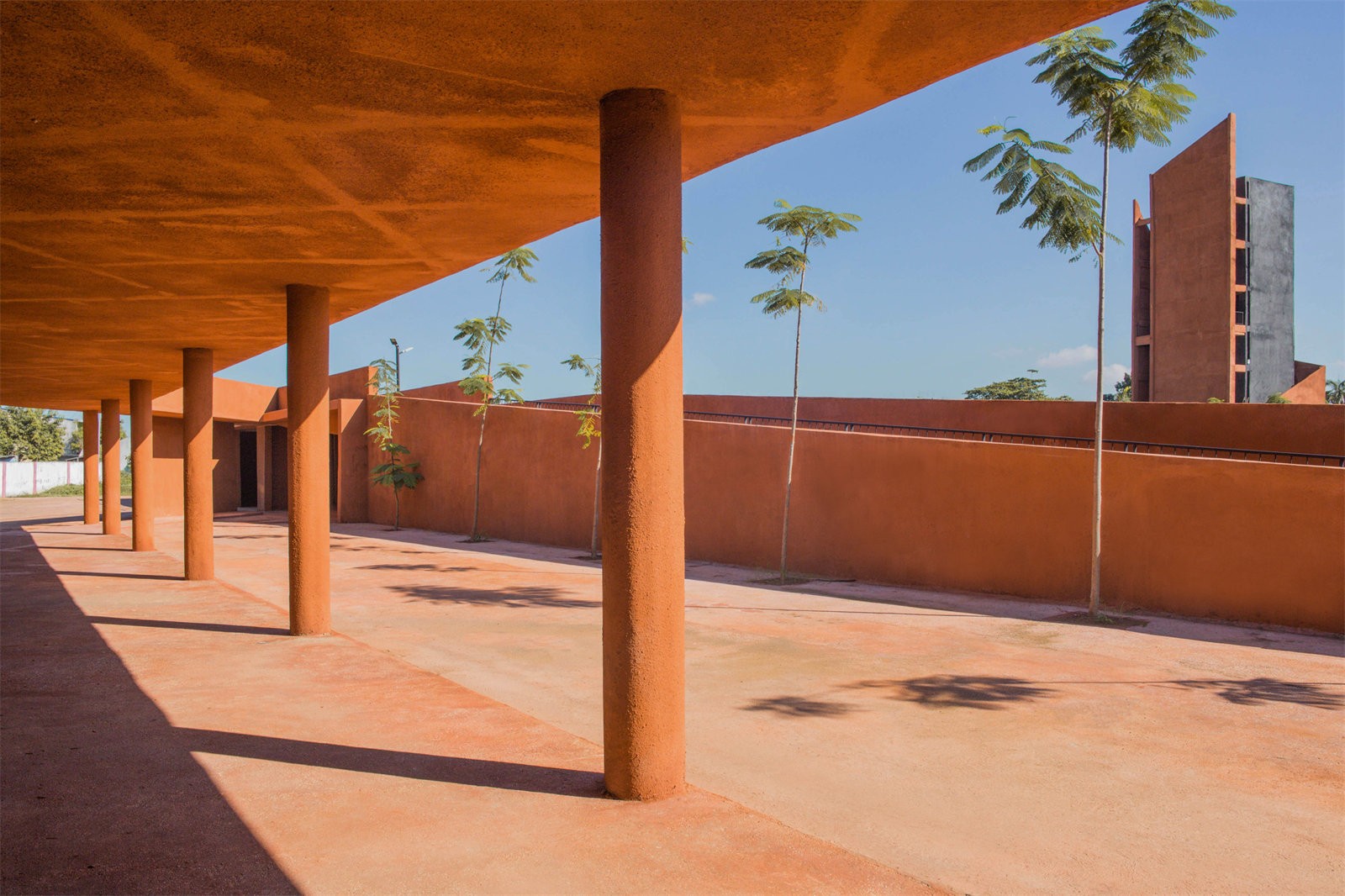

▼礫石的應用減少了球的反彈

The application of gravel reduces ball bounce ? Agung Fadriansyah

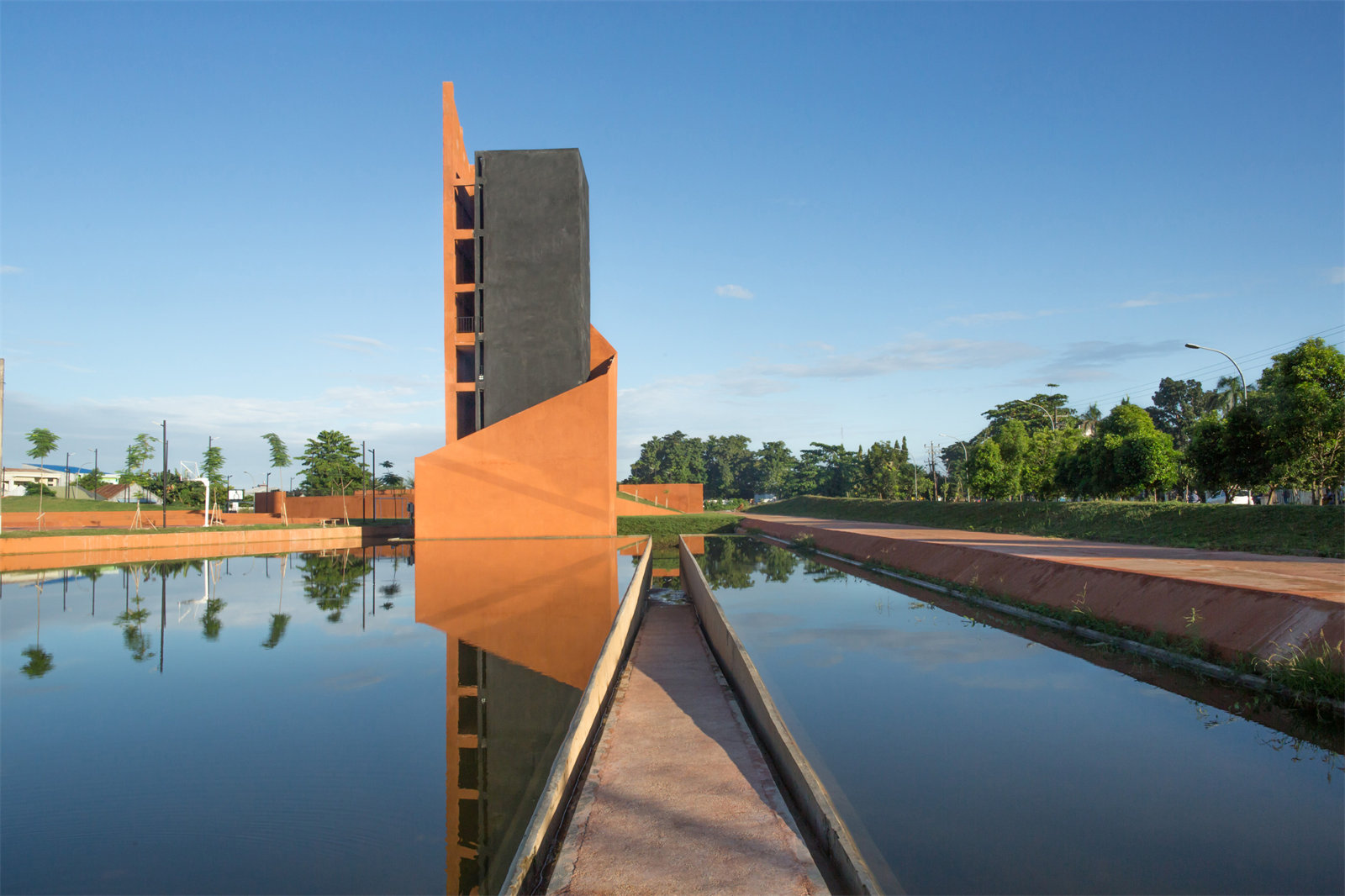

景觀塔被巧妙地安置在場地最東端，項目中幾乎所有設施與元素都朝向塔樓。設計的靈感來自于“patonro”，一種起源于南蘇拉威西島的當?shù)仡^飾。除了以“patonro”為場地朝向的中心外，人們在場地內的任何區域都能觀賞到塔的全貌，且場地內的每個元素都能構成塔的框景。為了達到這一目標，塔樓周圍的場地相比于其他部分更加平整。
