上海綠地中心徐匯綠地繽紛城景觀設計 | 日建設計

日建設計 2021-07-27

原創

項目名稱：

上海綠地中心徐匯綠地繽紛城
項目地點：

上海
項目規模：

304 910平方米
設計公司：

日建設計
施工單位：

綠地集團 / 上海綠地恒濱置業有限公司
建成時間：

2017
圖片來源：

楊敏 / mintwow，胡文杰 / 上海渡影文化傳播有限公司

在上海最繁忙的地鐵站之一的上方，坐落著一座城市綠谷綜合體。作為項目最出彩的亮點，設計師將一條步道式的景觀公園融入在了建筑空間之中。并借由將自然環境與人類空間融合在一起的URBAN FARM概念，通過打造智能的屋頂形態，這個兩萬平米的綠谷綜合體將它的步伐“編織”進了市民的日常生活。屋頂被解構成了尺度各不相同，卻在不同高度上環環相扣的個體，并由次打造出妙趣橫生的在三維層面上豐富變化而又緊密相連的室外平臺與坡地，并與屋頂下方的建筑功能及其包含的人類活動交相呼應。

A green urban valley complex with a ‘street landscape park’ as a highlight in the architectural space, is sitting right above one of the most used metro stations in Shanghai. The 20,000m sq. green valley complex, designed with the URBAN FARM concept of merging nature and human space, weaves its way into the daily life of city dwellers through the intelligent roof geometry. The ‘roof’ is split into different scales and connected in various heights, where interesting terraces and slopes outdoor are connected in a 3D way, responding to the architectural functions below and human activities within it.

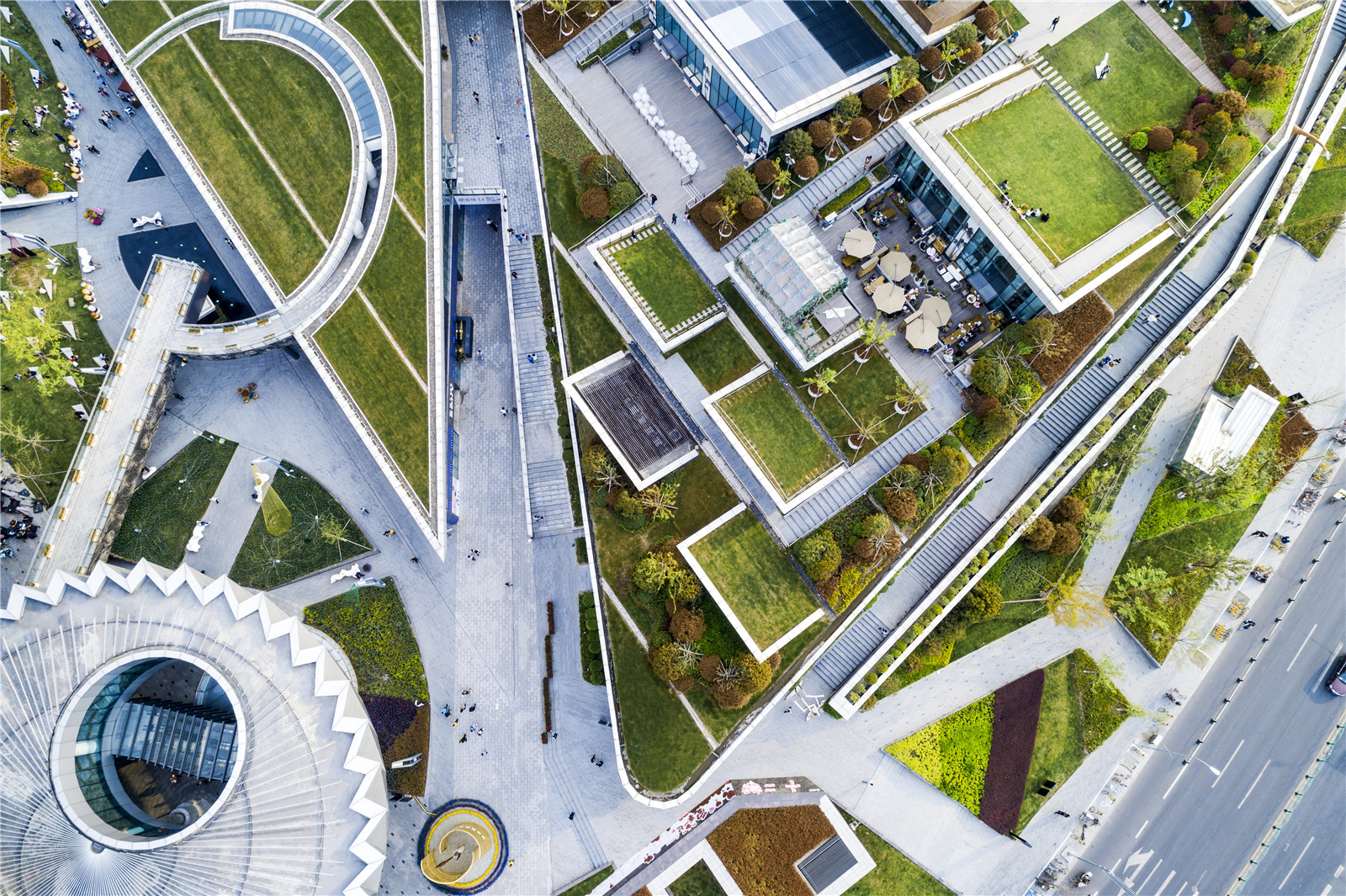

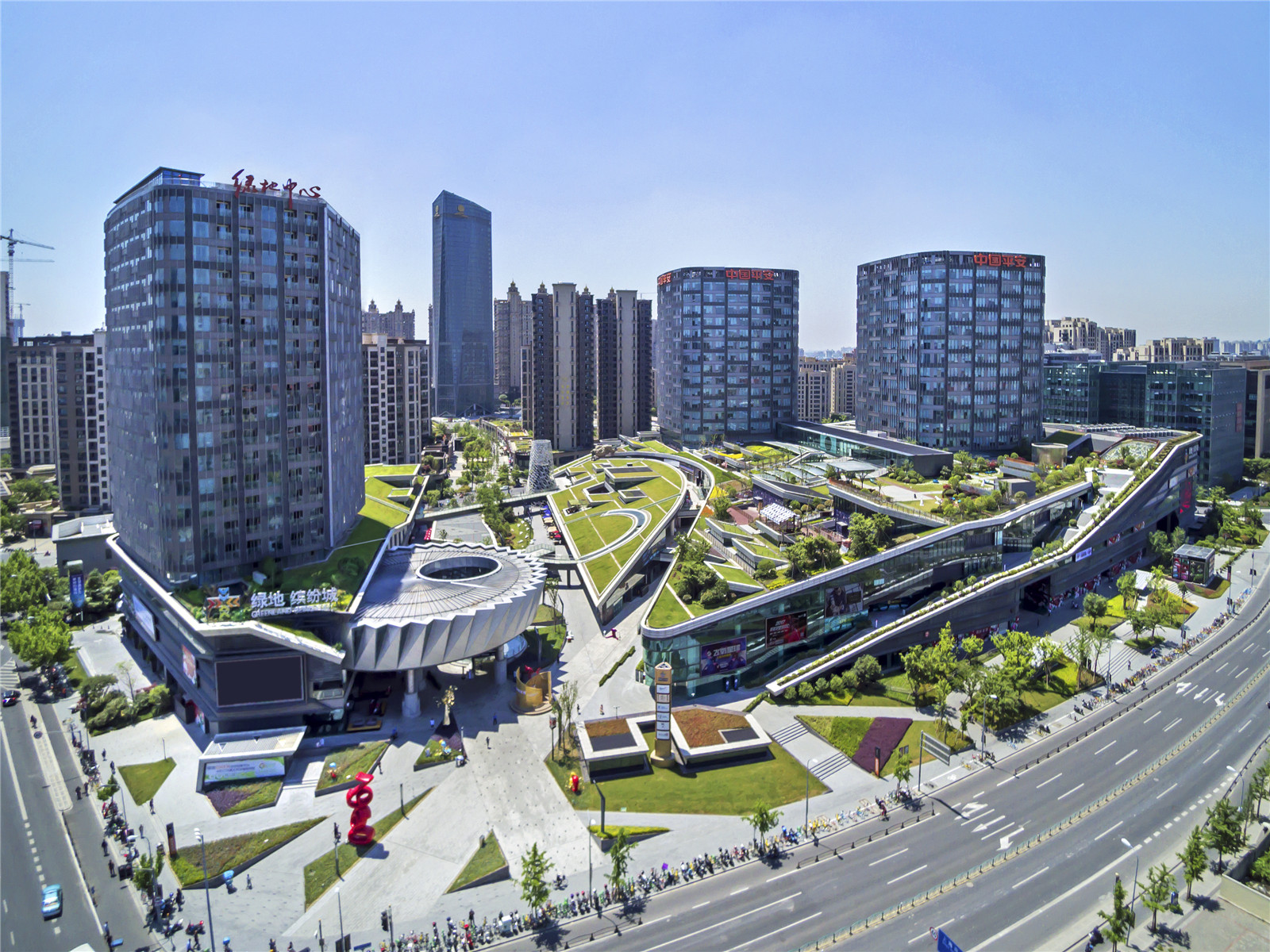

▼2萬平方米的城市山谷

The 20,000sqm urban valley ?上海渡影文化傳播有限公司

a-03)_The 20,000sqm urban valley.jpg

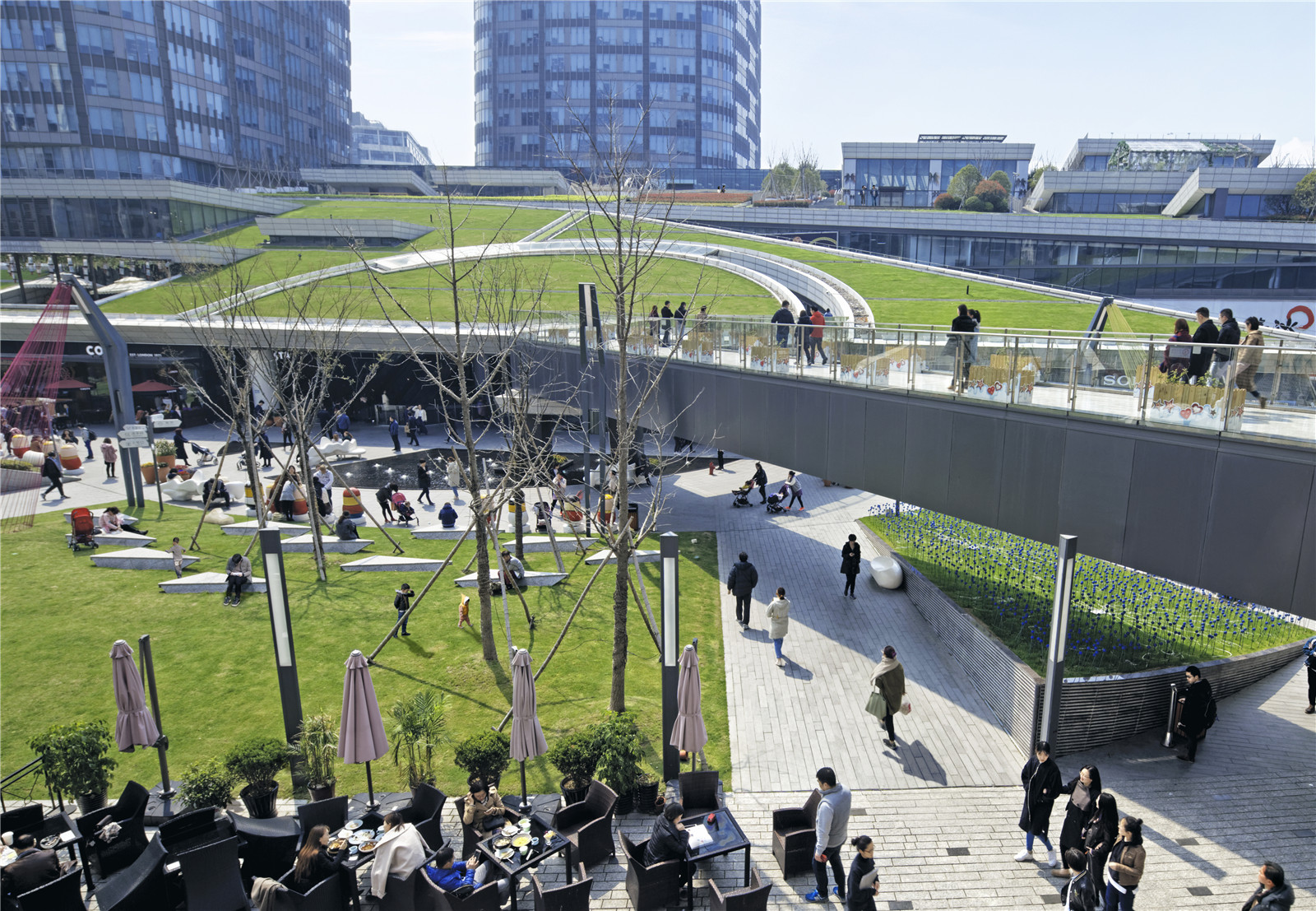

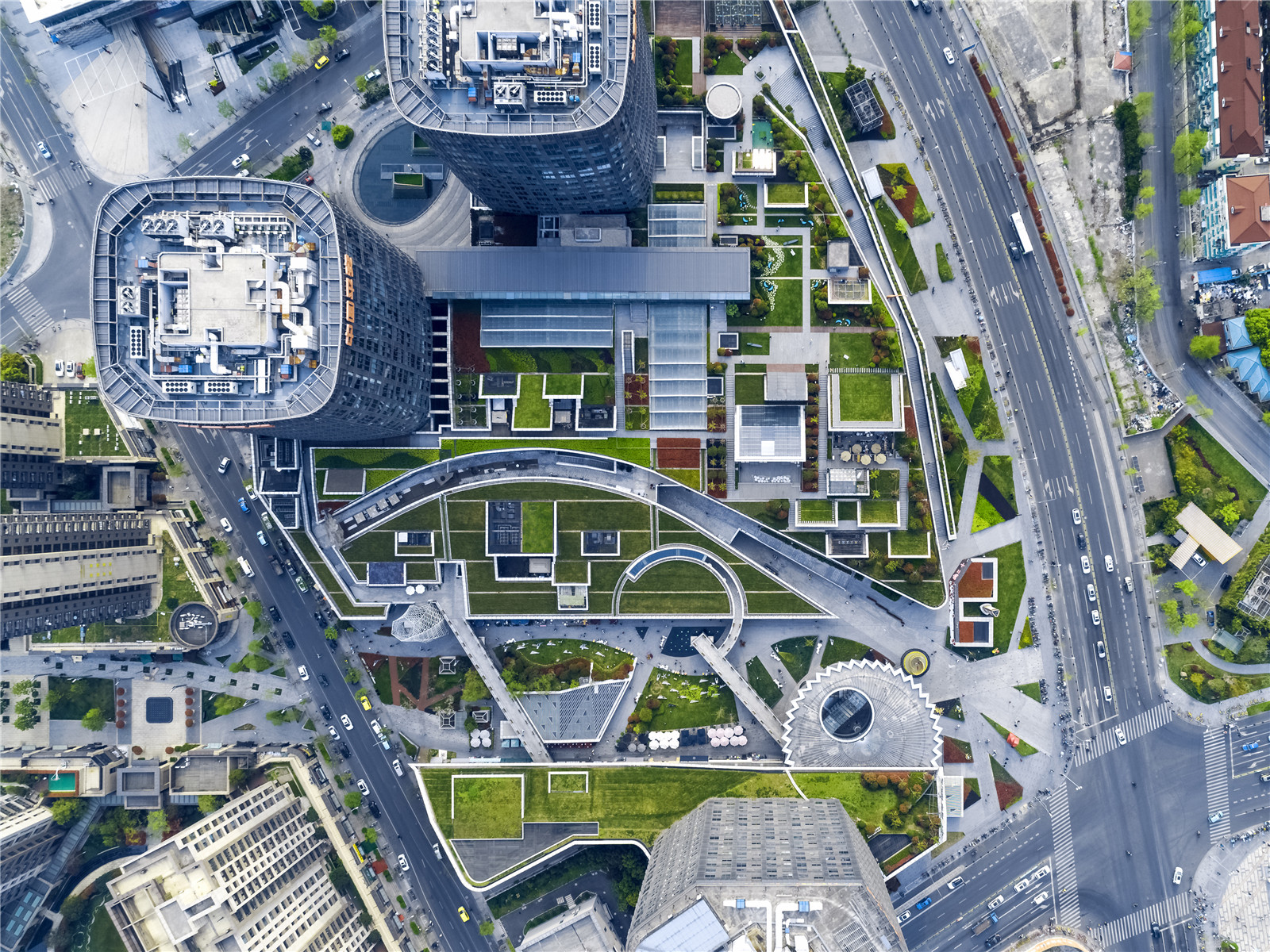

▼融合自然與人類空間，交織于日常生活

Merging nature and human space, weaves its way into the daily life ?楊敏

a-02)_Merging nature and human space, weaves its way into the daily life.jpg

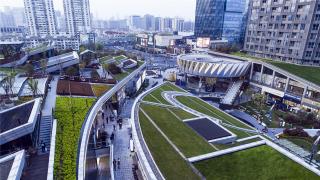

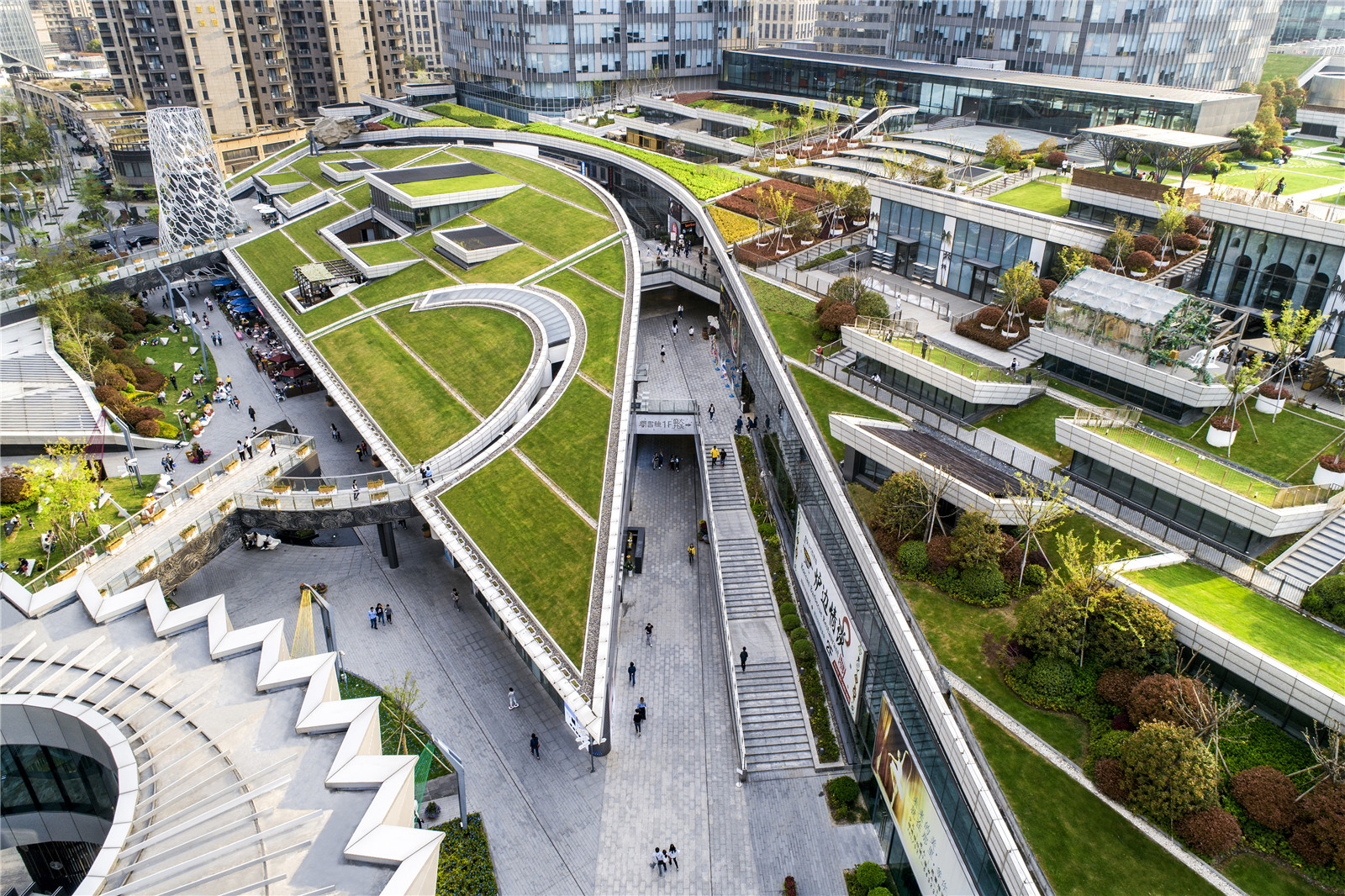

▼人與自然共生的URBAN FARM

The URBAN FARM where people and nature coexist ?楊敏

a-01)_the URBAN FARM where people and nature coexist.jpg

▼如城市公園般的主購物街

Main shopping street like a city park ?上海渡影文化傳播有限公司

a-04)_Main shopping street like a city park.jpg

▼設計示意

Design diagram ?日建設計

c-04)_It is not a relationship between ordinary public space and architecture.jpg

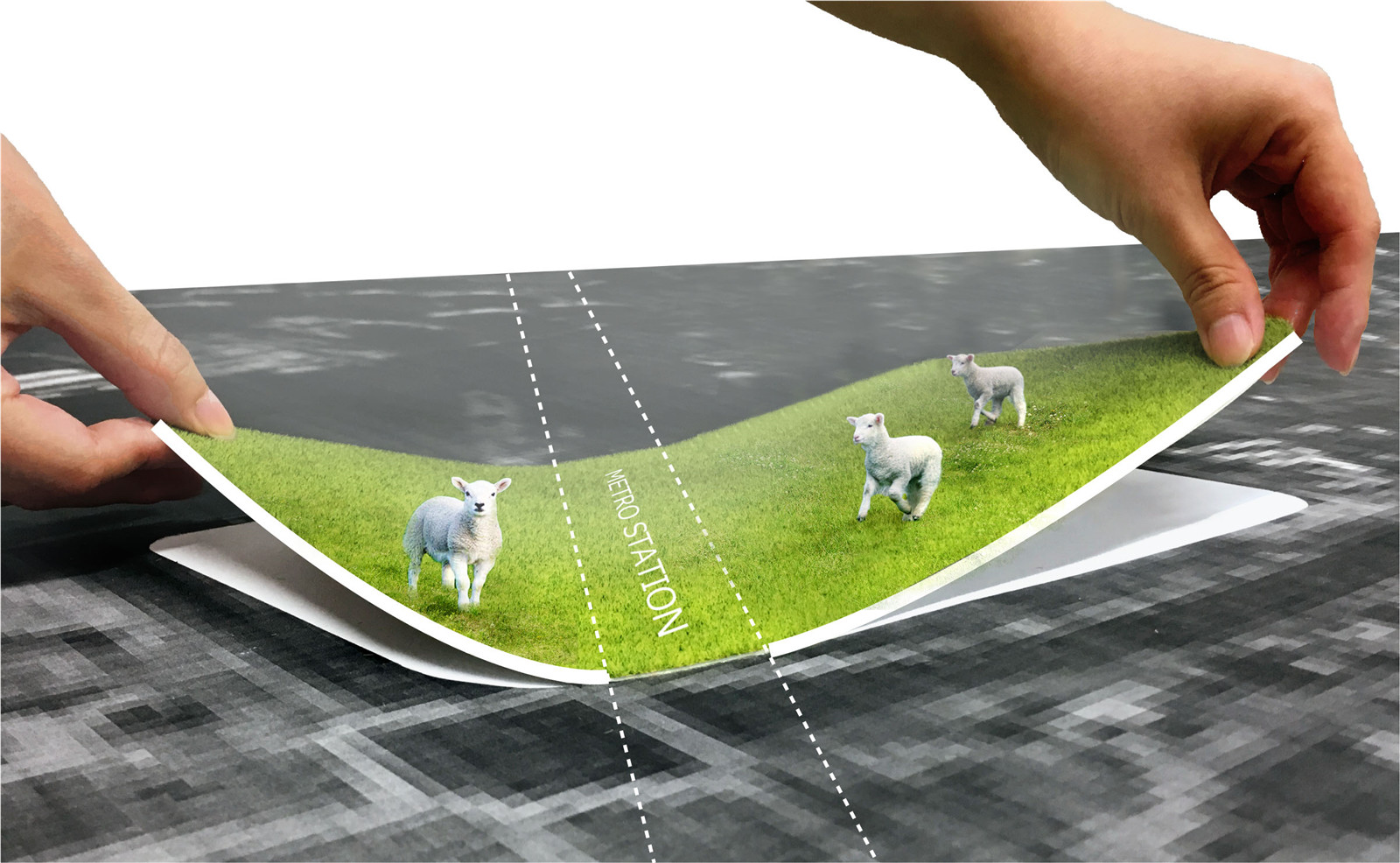

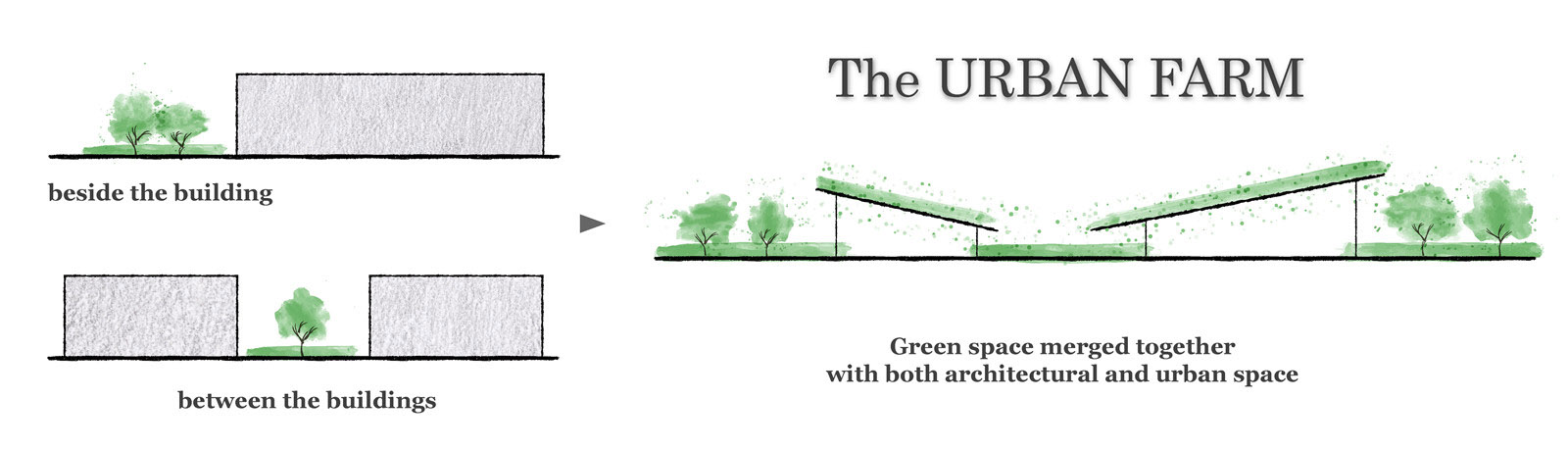

▼形態設計概念

Concept of the form ?日建設計

c-03)_concept of the form.jpg

這是一個峽谷形態的建筑拓?fù)湫?，建筑面積30萬平方米，項目場地中心設計有一條寬闊的綠道（景觀綠帶）。它座落在一個上海核心地鐵站的正上方，包裹著7號線和12號線的換乘站-龍華路站，吸引著所有每天到訪這個地鐵站的人們以及居住在項目周邊的市民。

This is a valley-shaped architectural topography, floor area 300,000m2, with a very broad green pathway designed at the center of the site. It is located right above one of the core metro station Long Hua Lu, where metro Line 7 and Line 12 come across each other. It is an advanced Transit Oriented Development of the city, which attracts most of the population coming to visit who are using the station daily as well as the surrounding city dwellers.

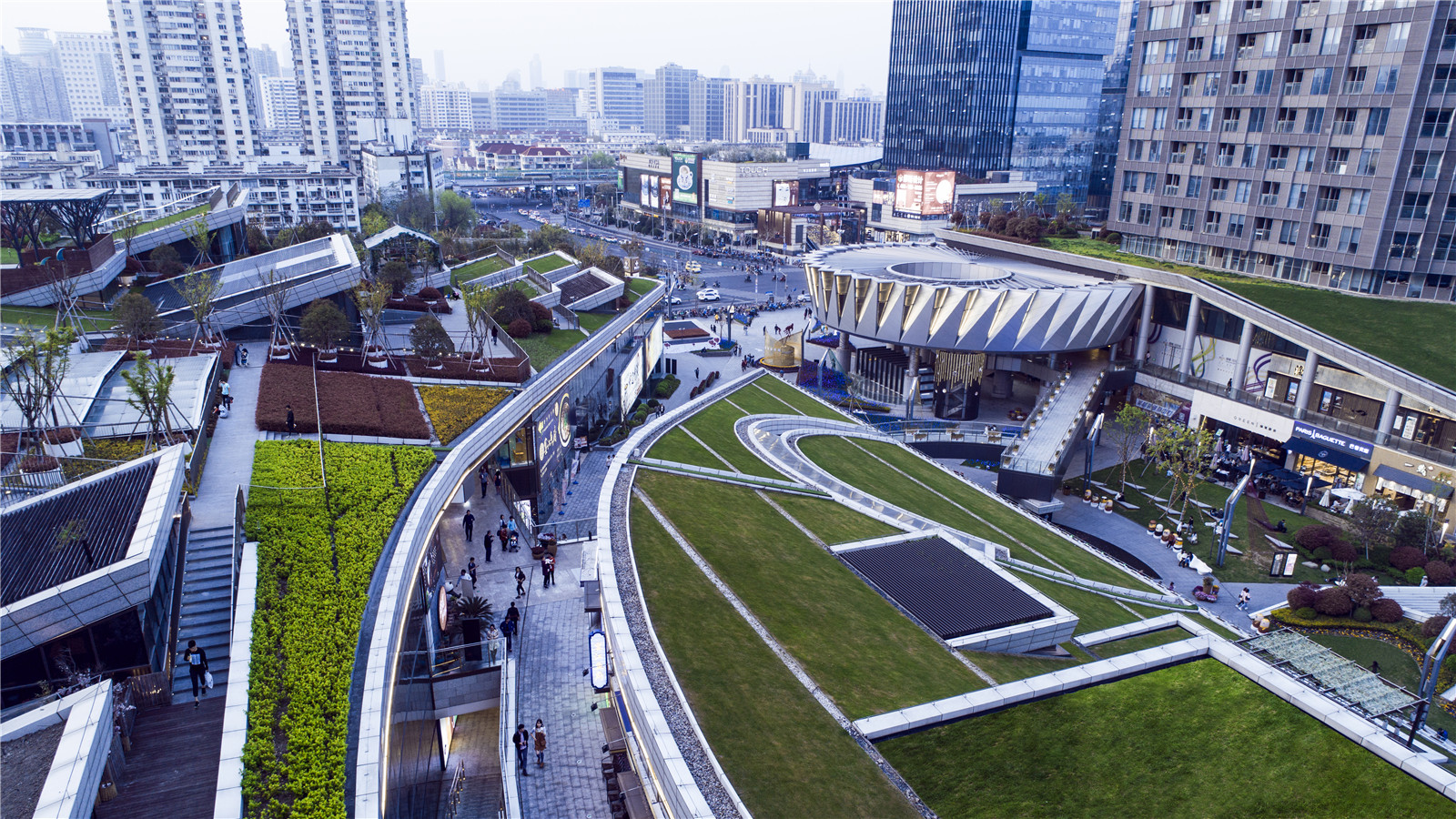

▼綠道24小時向城市開放

Urban Corridor is 24 hours open to the city ?楊敏

a-05)_Urban Corridor is 24hours open to the city.jpg

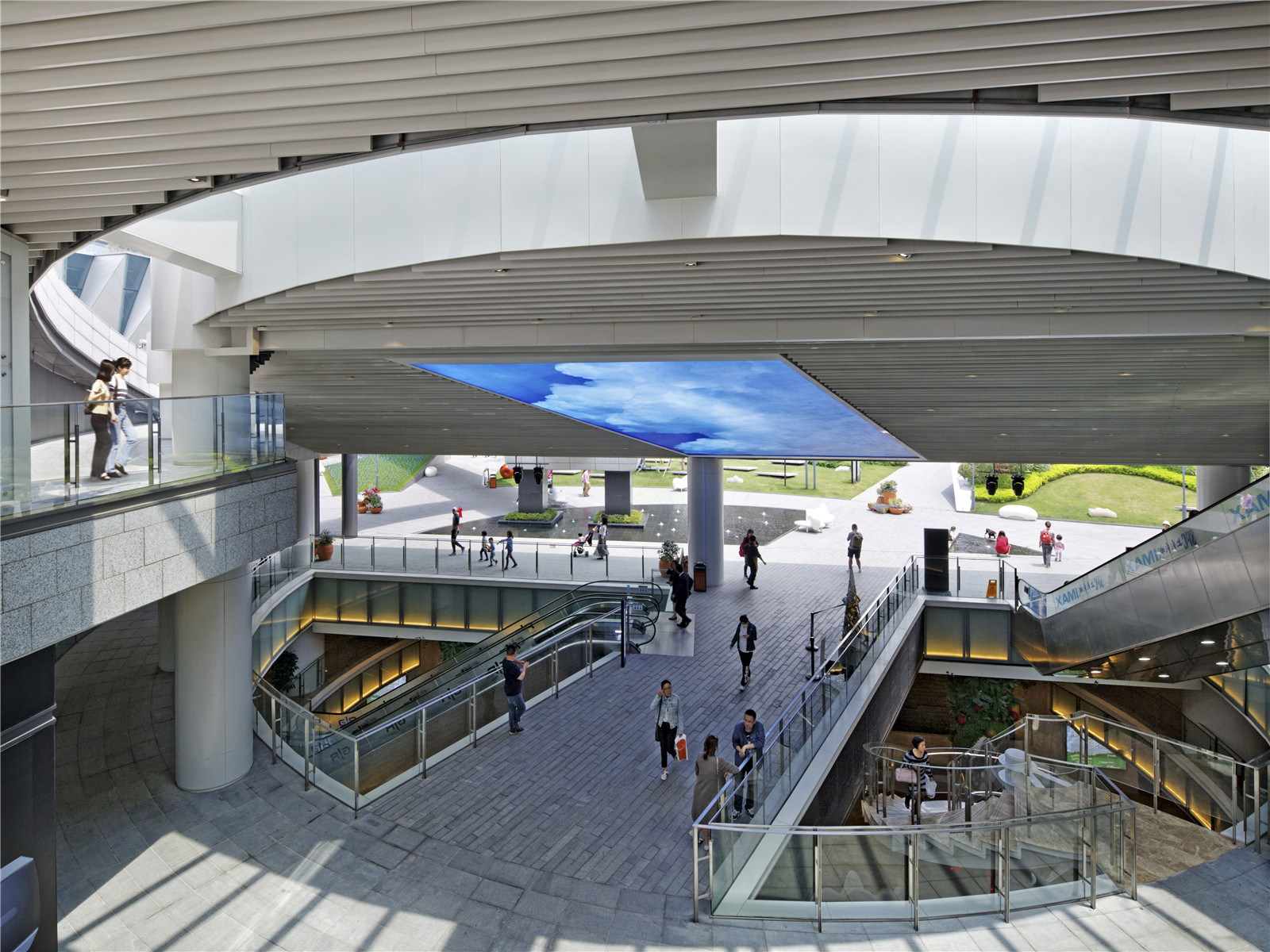

▼地鐵換乘站和購物區在作為城市核心的同時為日常生活帶來自然氣息

Urban Core is Metro transfers and shopping while feeling nature on a daily life ?上海渡影文化傳播有限公司

a-06)_Urban Core is Metro transfers and shopping while feeling nature on a daily life.jpg

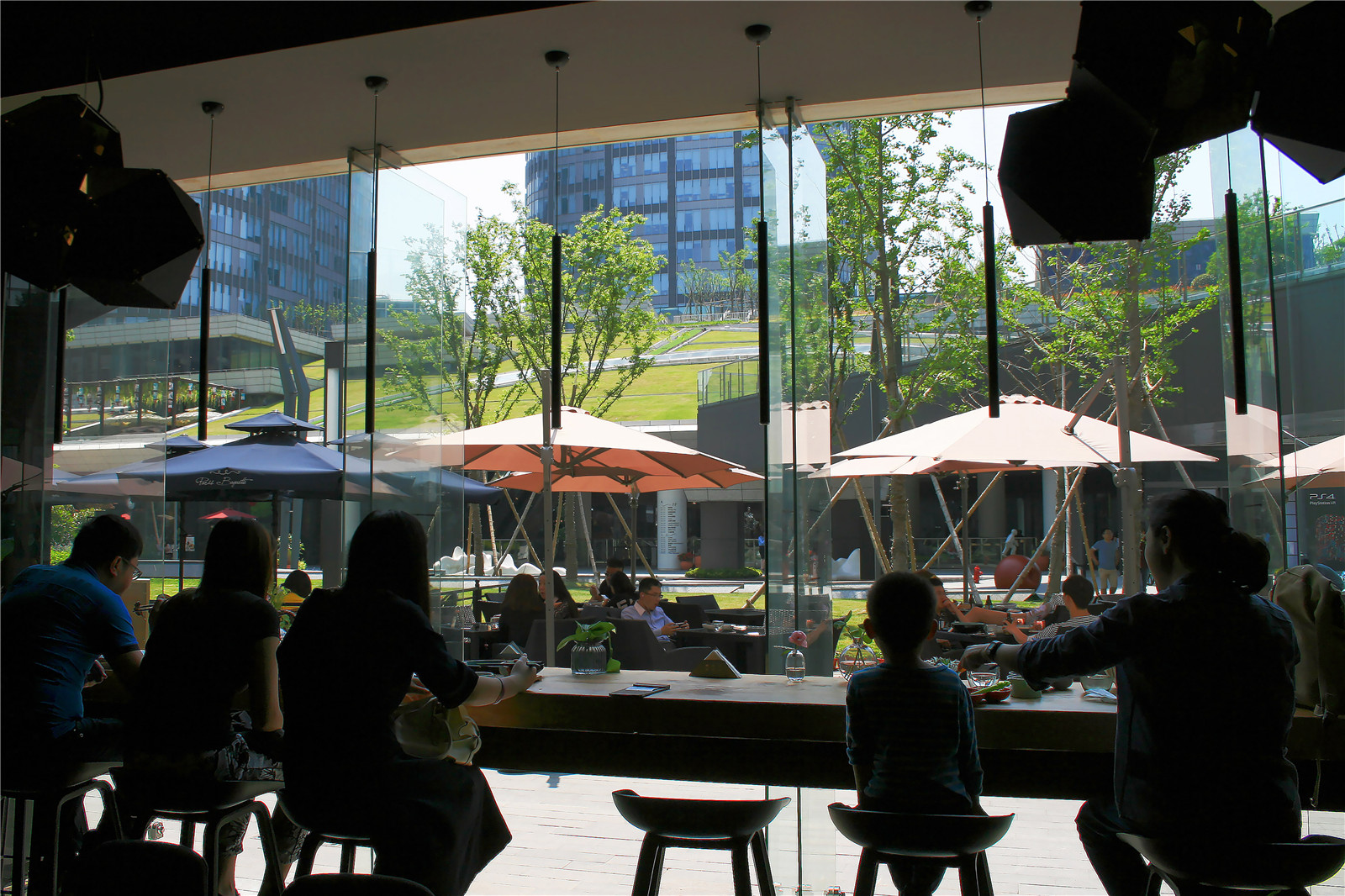

▼所有的商店都朝向室外

All stores face external space ?日建設計

a-07)_All stores face external space.jpg

場地內設計了巨大的綠化空間。在這些綠色之中，設計師以上海傳統建筑的“老虎窗”為靈感，在不同的建筑高度上設置了著大量的外向型小型活動平臺；并且通過將所有這些尺度適宜的活動場地、綠化屋頂、辦公入口、零售店鋪以及公共交通場地被緊密的編織在生動有趣的在三維空間之中，凝聚成為了一個大尺度的，擁有充足自然光和綠色元素城市公共空間。

There are massive green space planned on site, with plenty of “small terrain” for activities scattered on various heights, inspired by the traditional Shanghai Architecture element: the Tiger Window. By weaving all the modestly sized activity spots together 3-dimensionally, It turns into a largely-scaled, joyful urban public space.

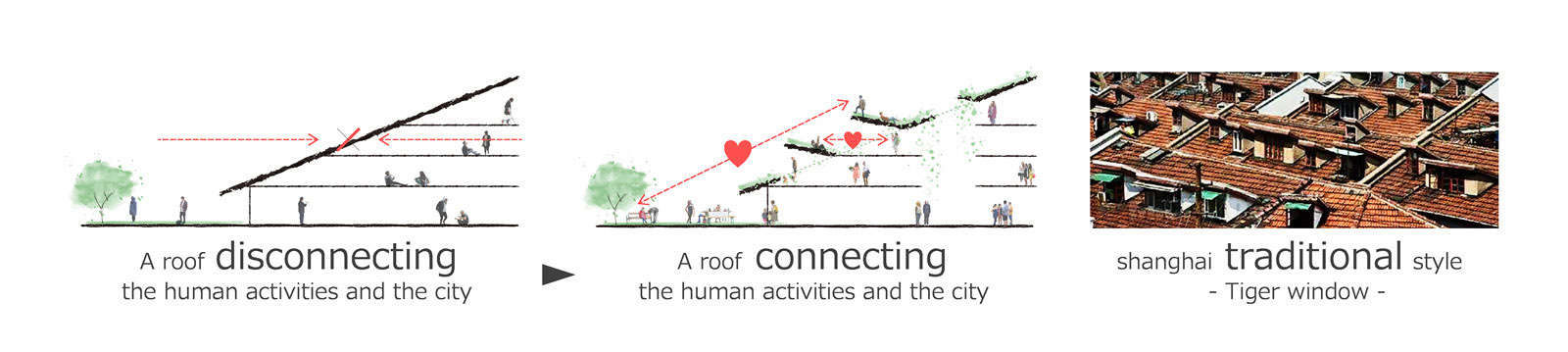

▼屋頂連接城市活動和上海傳統

A roof that connects city activities and Shanghai tradition ?日建設計

c-08)_A roof that connects city activities and Shanghai tradition.jpg

▼綠道交通動線

Outdoor walking circulation ?日建設計

c-09)_Sustainable_Outdoor walking circulation.jpg

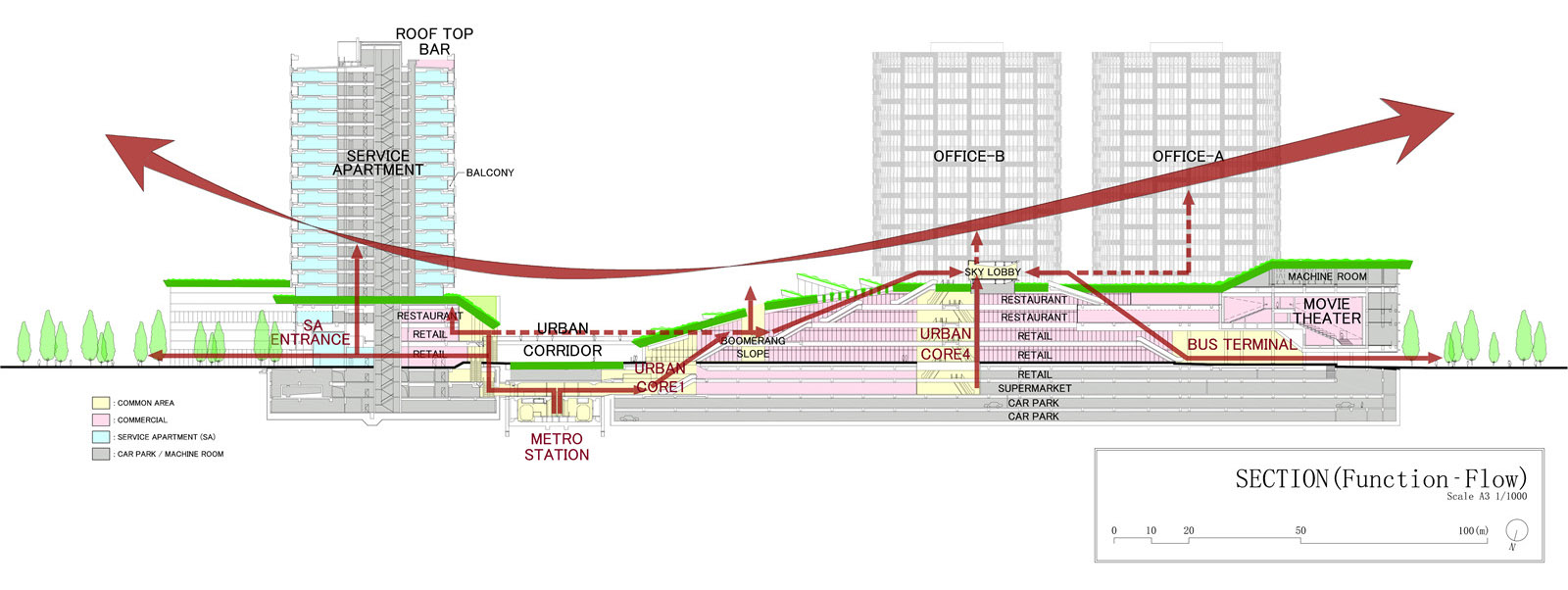

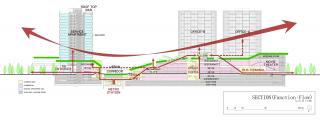

▼功能分析剖面

Section-Function flow vertically ?日建設計

b-2)_Section_Function flow vertically.jpg

▼各類活動和集會的場所

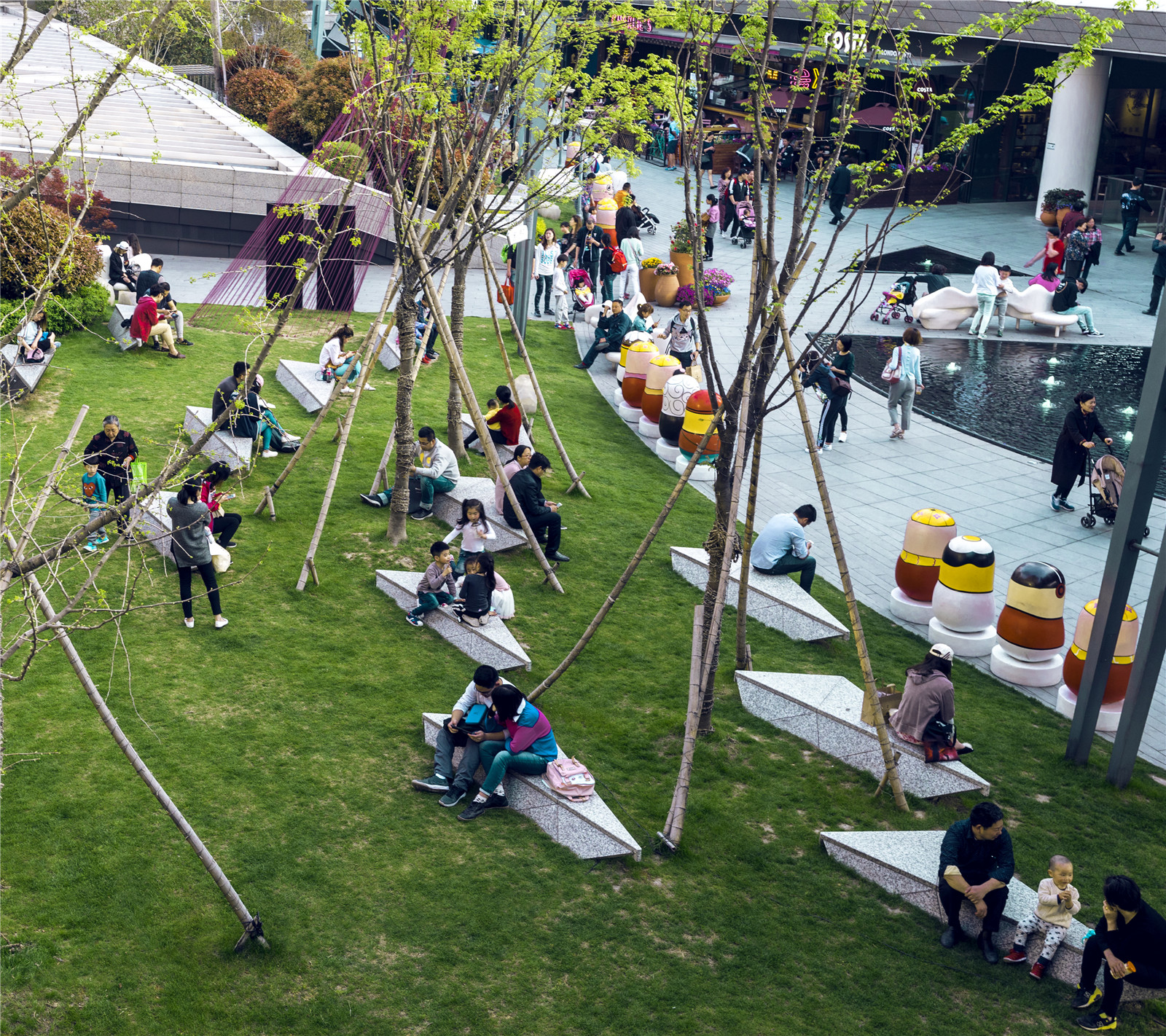

Various activities and gathering ?楊敏

a-09)_Various activities and gathering.jpg

▼市民們的休閑區

A rest for Shanghai citizens ?楊敏

a-08)_A rest for Shanghai citizens.jpg

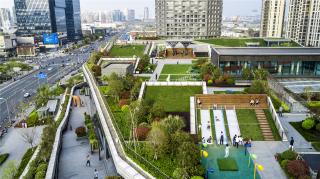

▼屋頂花園充滿孩子們的歡聲笑語

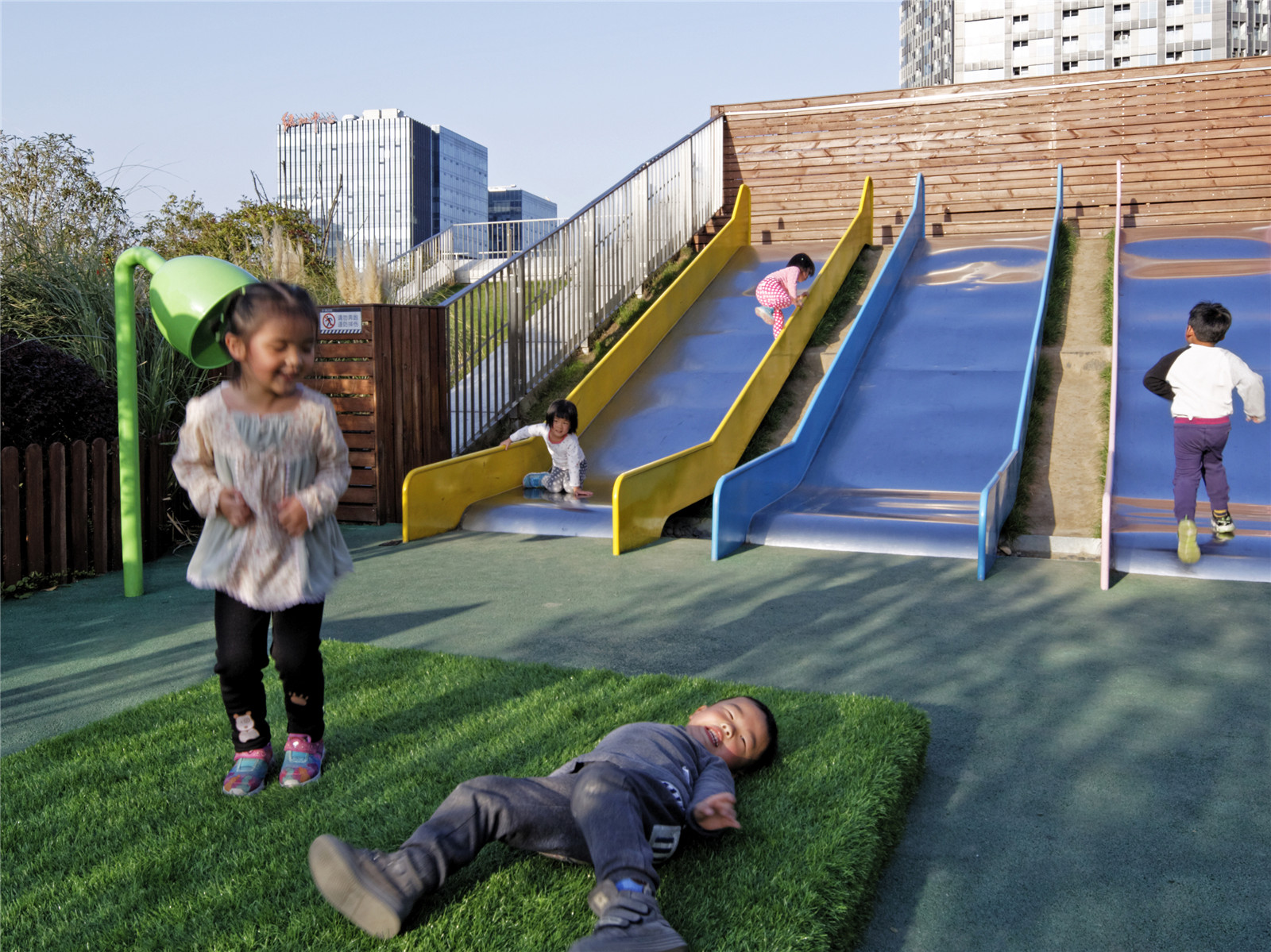

The roof garden is full of children’s smiles ?上海渡影文化傳播有限公司

a-10)_The roof garden is full of children's smiles.jpg

項目充分利用了環境技術，將所有的商業動線都安排在了無需空調的半室內半室外的灰空間內。通過此舉，普通情況下每年需要112,000GJ的空調能耗在本項目中被削減為零。而且無空調的設計，有效降低了本項目每年二氧化碳的排放量約72,200噸，這相當于26.2公頃的森林一年能夠吸收的二氧化碳的數量。

Heat island is a big problem for a typical mega city like Shanghai. Shopping Malls usually have a walking circulation indoor, but in Green Land, the main circulation is places outdoor and all the shops located along are open to the outdoor directly. The air-conditioner for the walking circulation which usually costs 112,000GJ per year, costs zero in Green Land Center. So does the running costs.

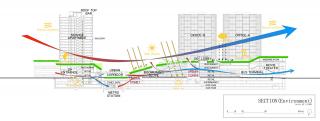

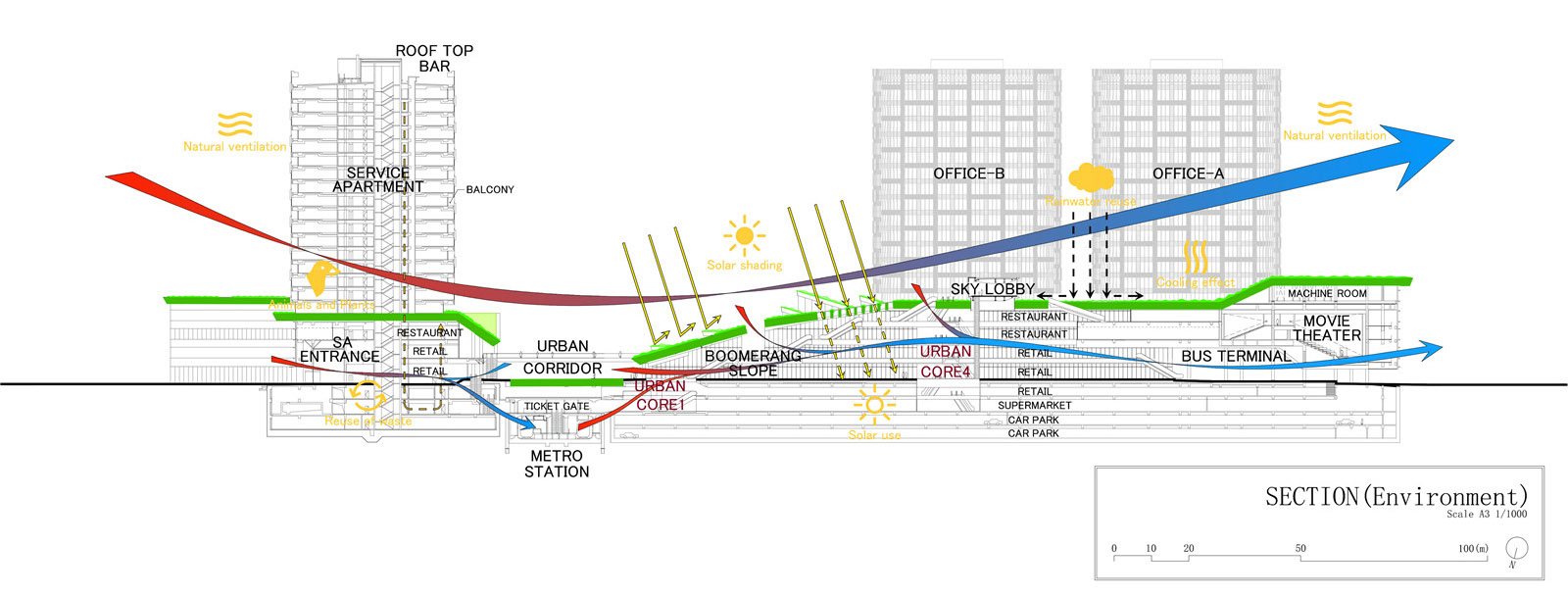

▼環境分析剖面

Section-Environment ?日建設計


▼步行系統的0能量消耗

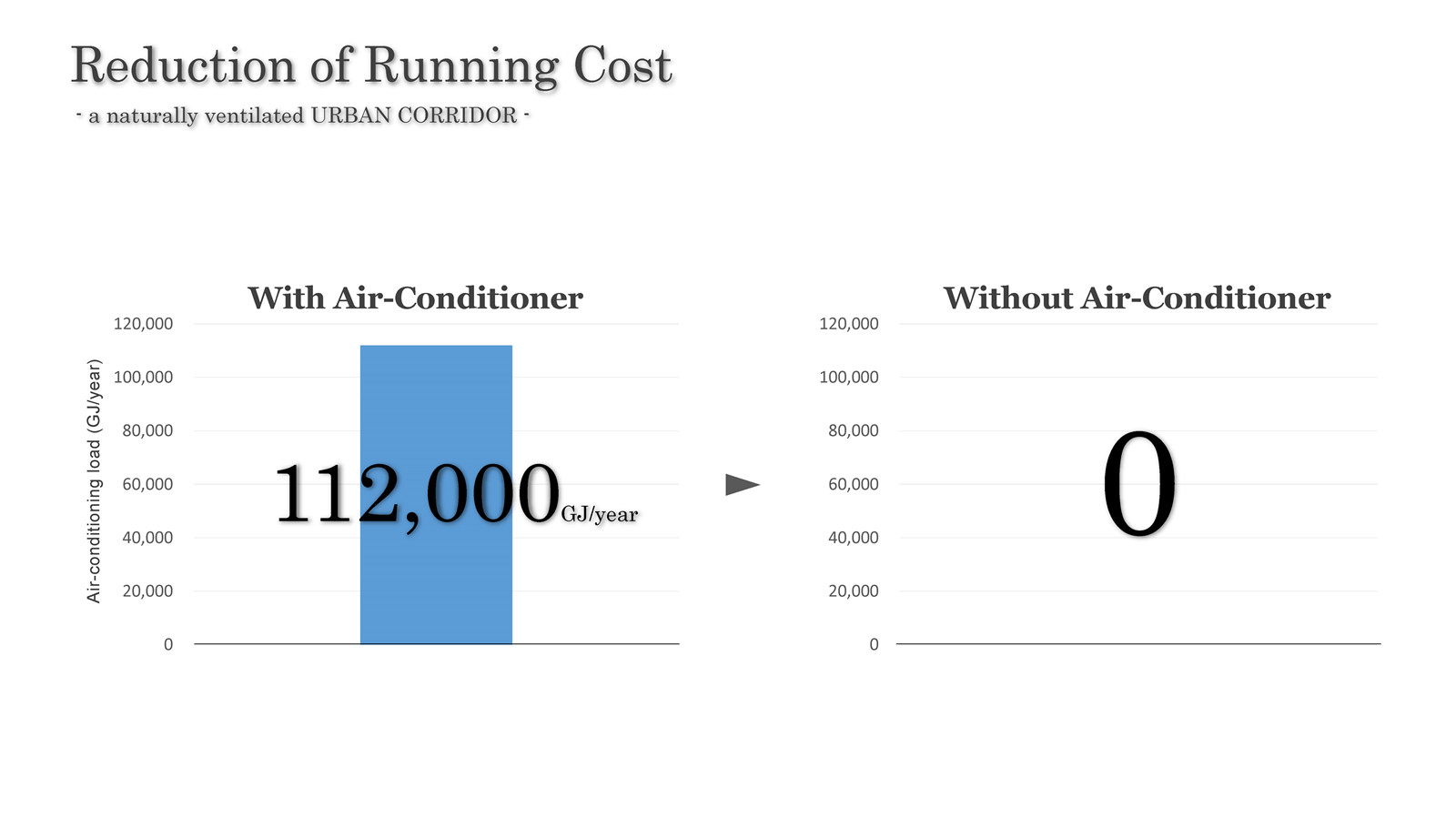

Walking circulations enegy cost 0 ?日建設計

c-10)_Walking circulations enegy cost 0 .JPG.jpg

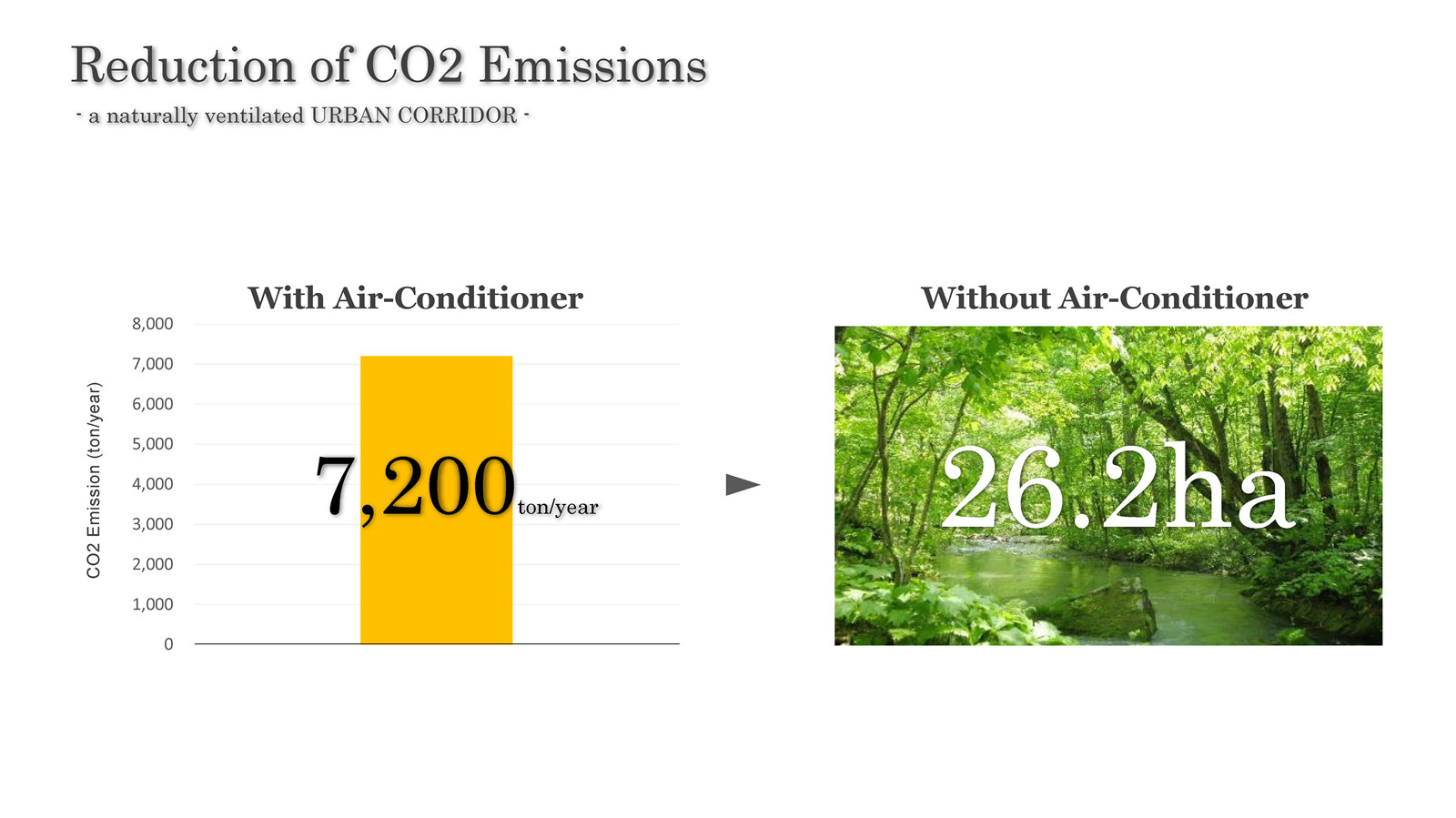

▼二氧化碳減排

Reduction CO2 emissions ?日建設計

c-11)_Reduction CO2 emissions.jpg

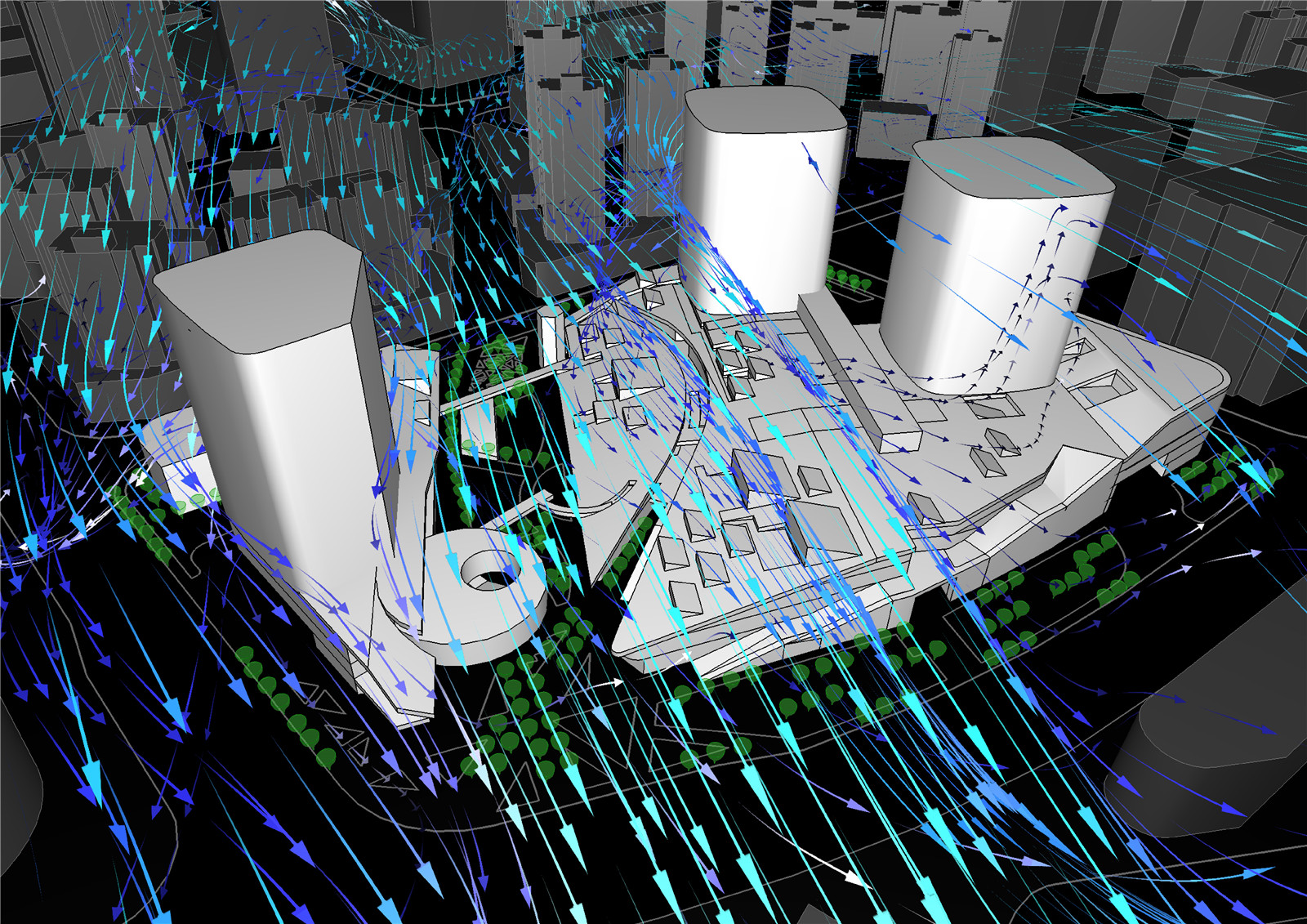

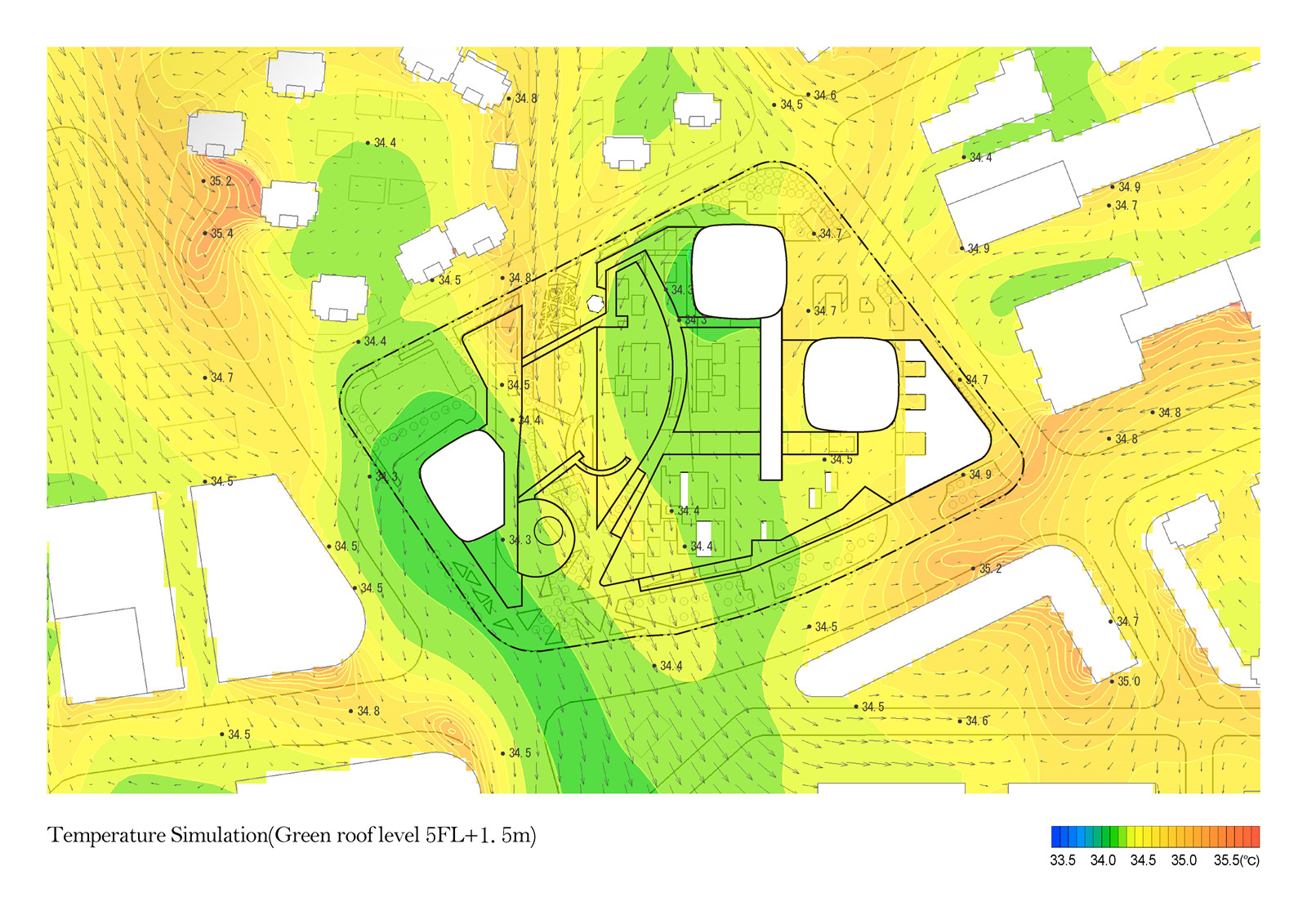

▼風向模擬

Wind-Simulation ?日建設計


▼展示城市建筑的新價值

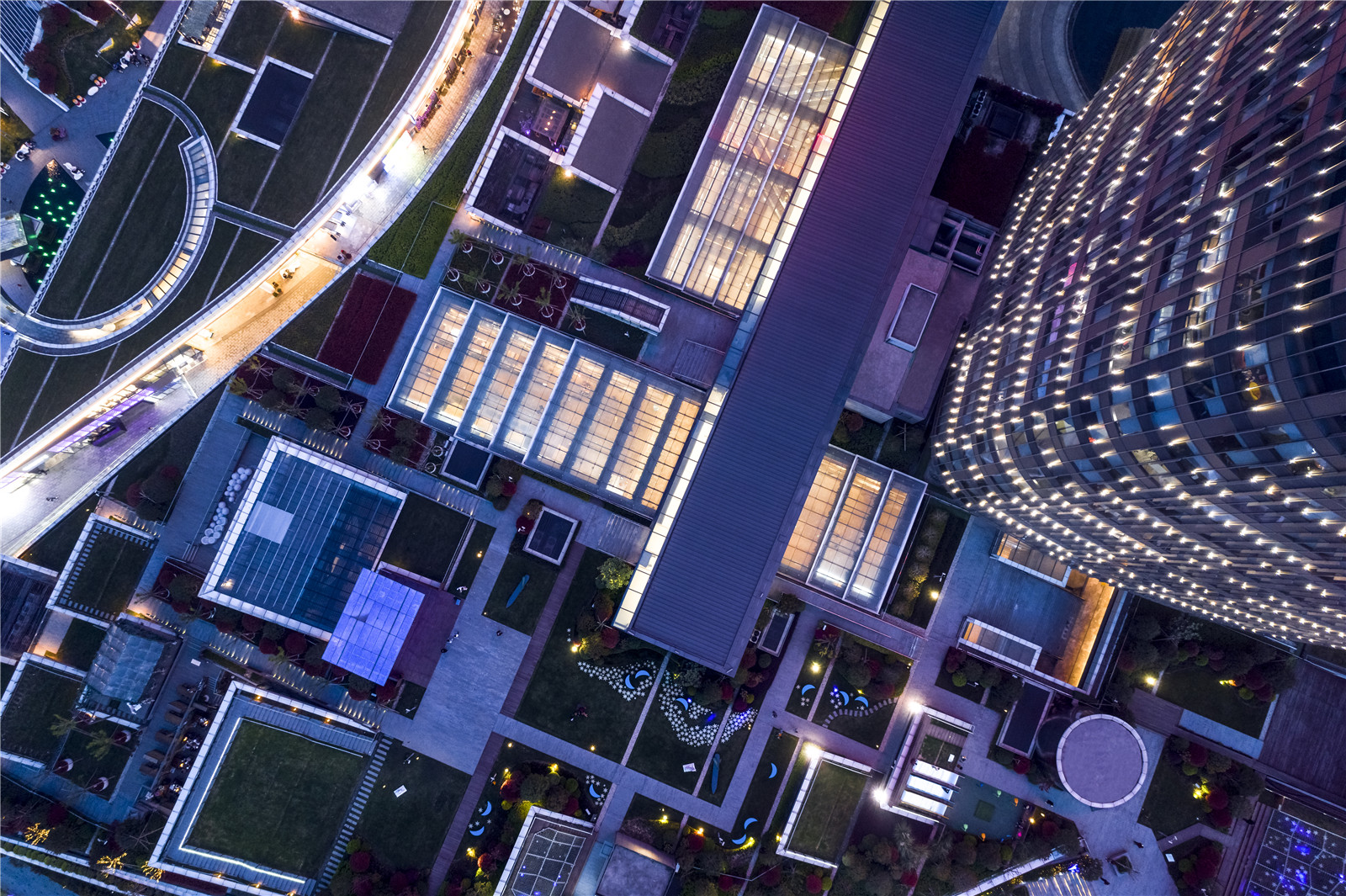

Showing the new value of urban architecture ?楊敏

a-11)_Showing the new value of urban architecture.jpg

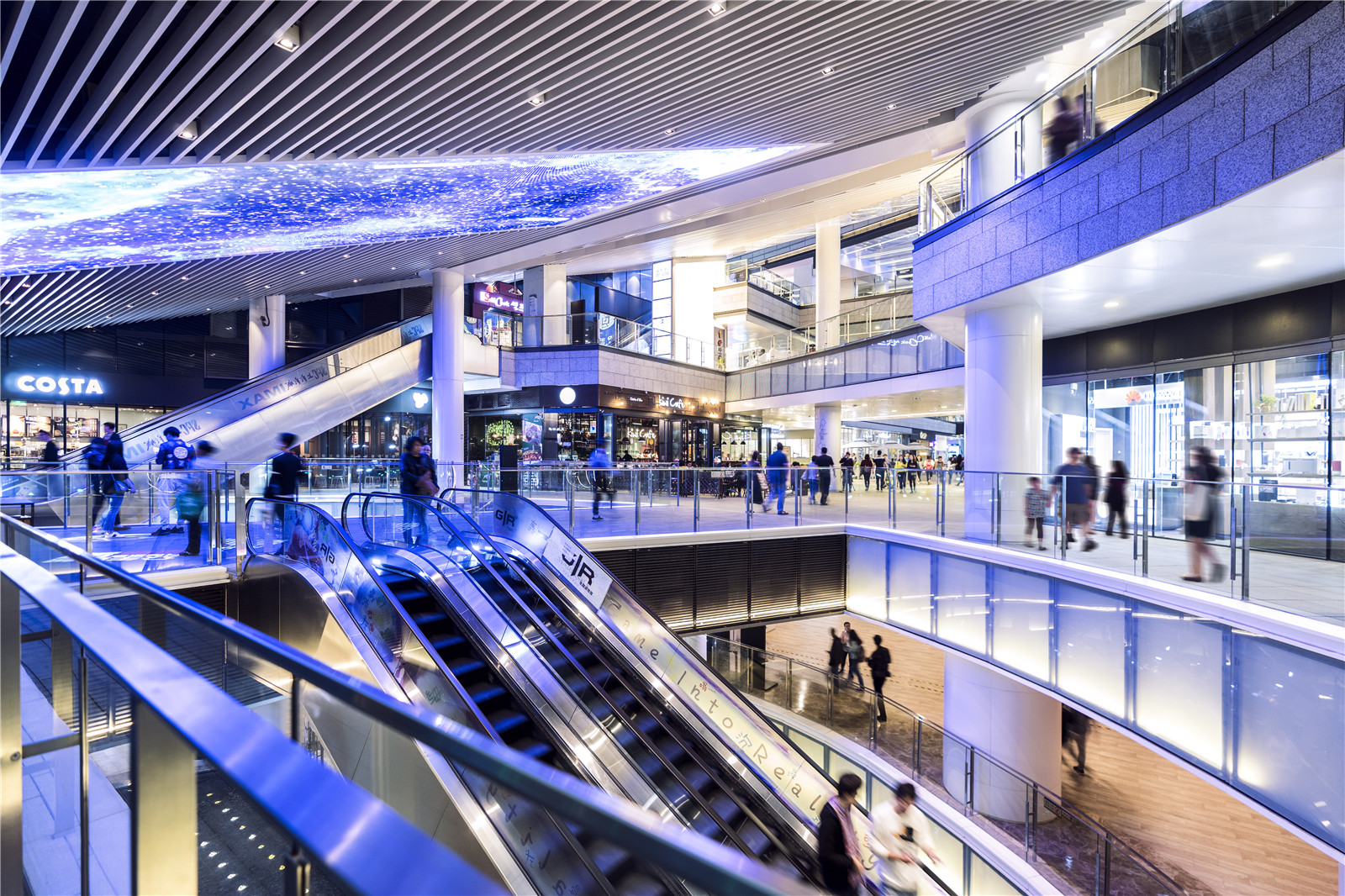

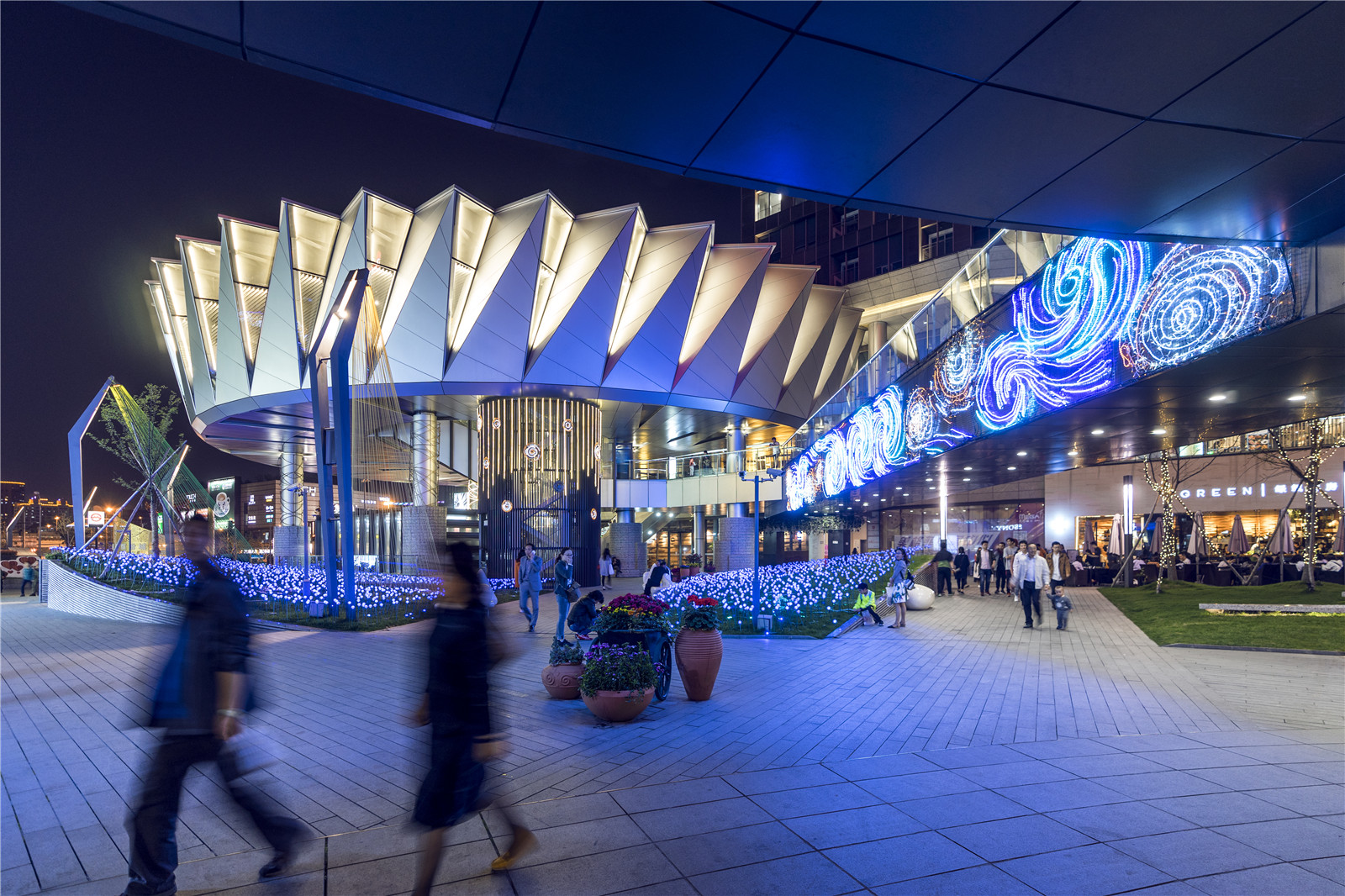

▼城市核心1，夜景

URBAN CORE 1 night view ?楊敏

a-12)_URBAN CORE1 night view.jpg

▼每個人的目的地

URBAN CORE is easy for anyone to find ?楊敏

a-13)_URBAN CORE is easy for anyone to find.jpg

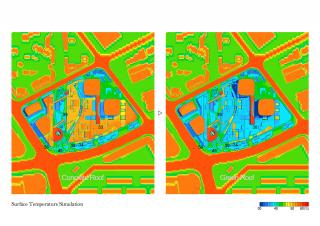

建筑空間形態調節著環境自身的熱工性能以抵抗城市的熱島效應，不僅喚醒城市，更給社會環境帶來一份勃勃生機。這樣清爽而振奮的環境，連同大尺度的綠化景觀與建筑一起，使URBAN FARM成為上海核心地段最受矚目的一顆明星。
